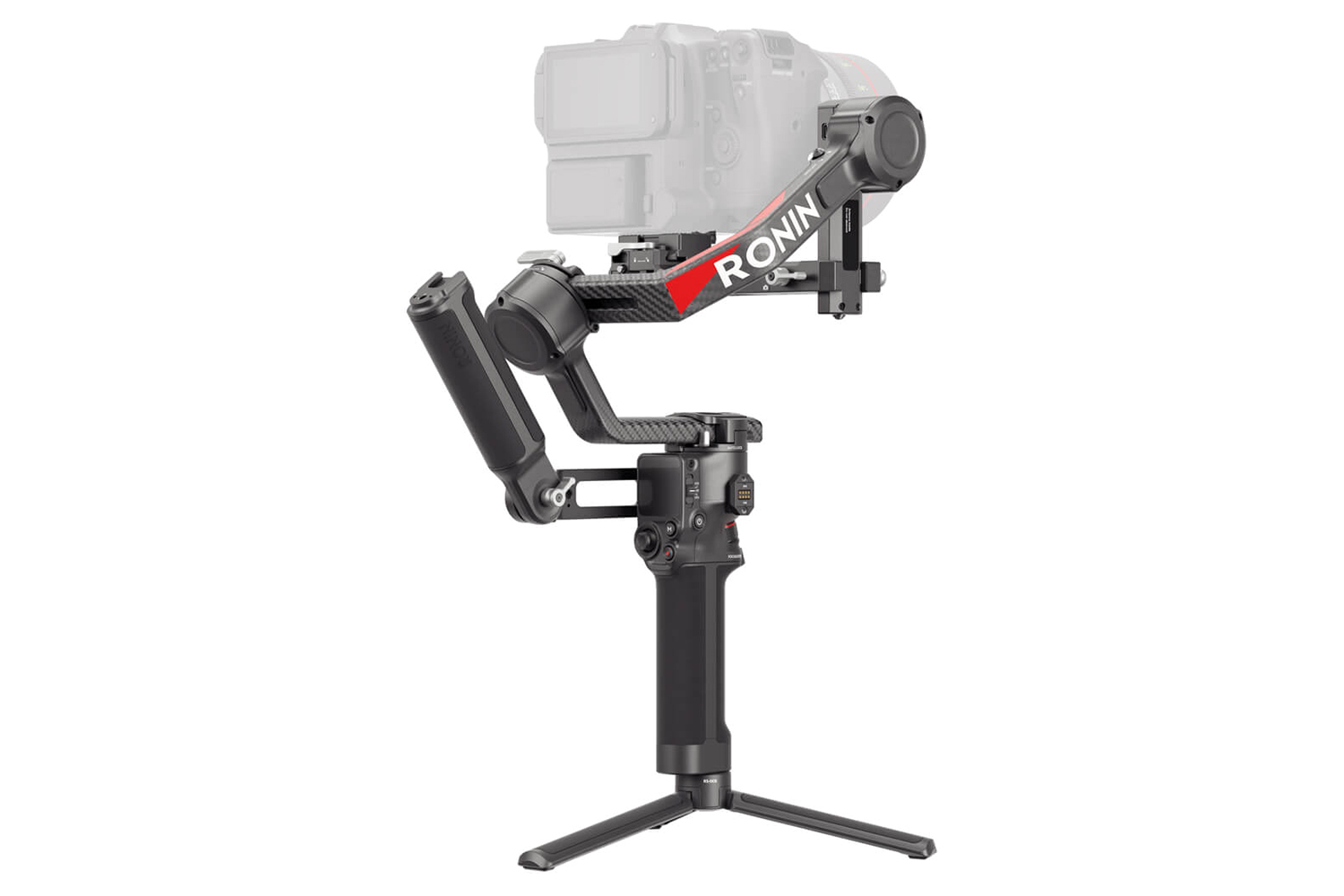

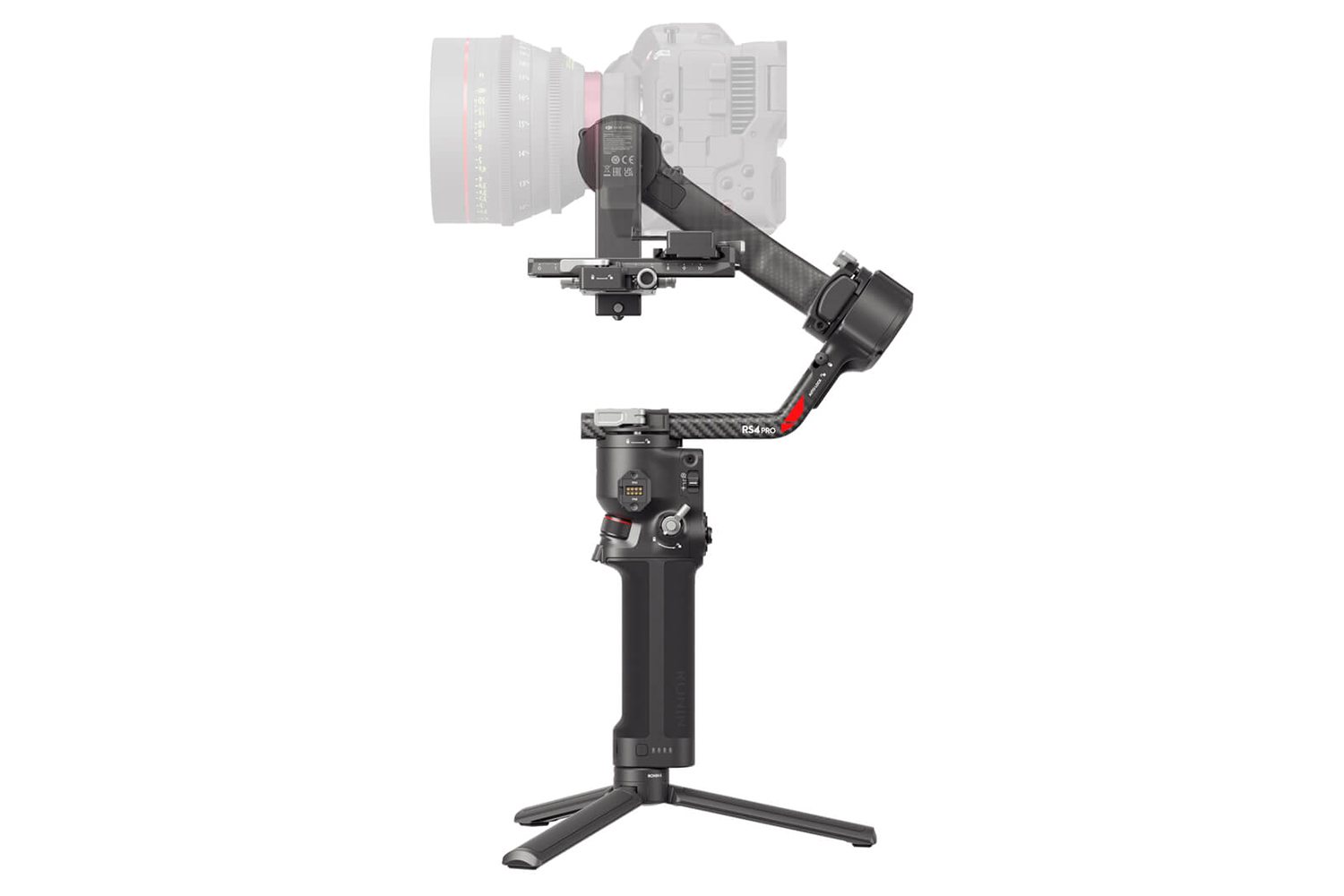

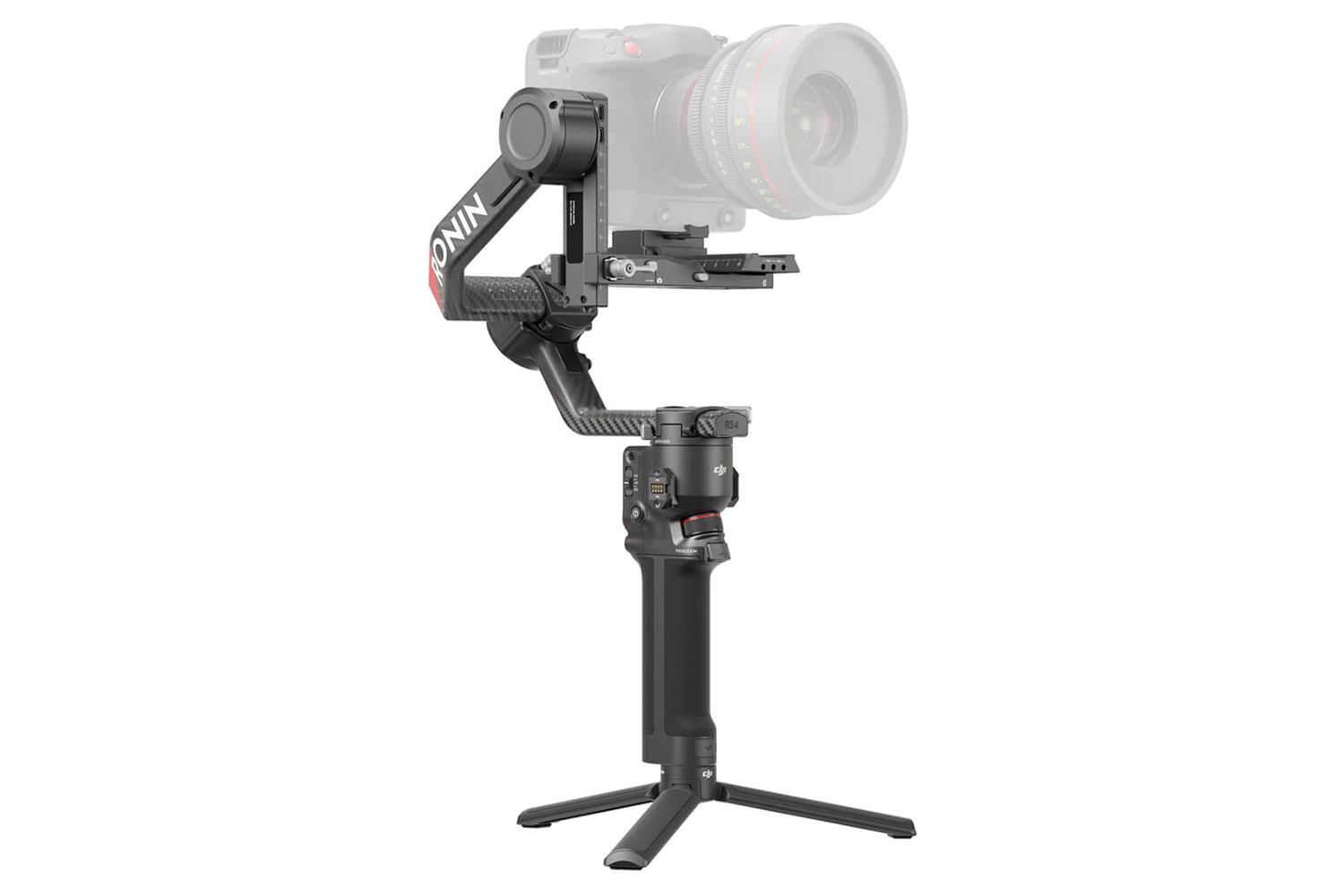

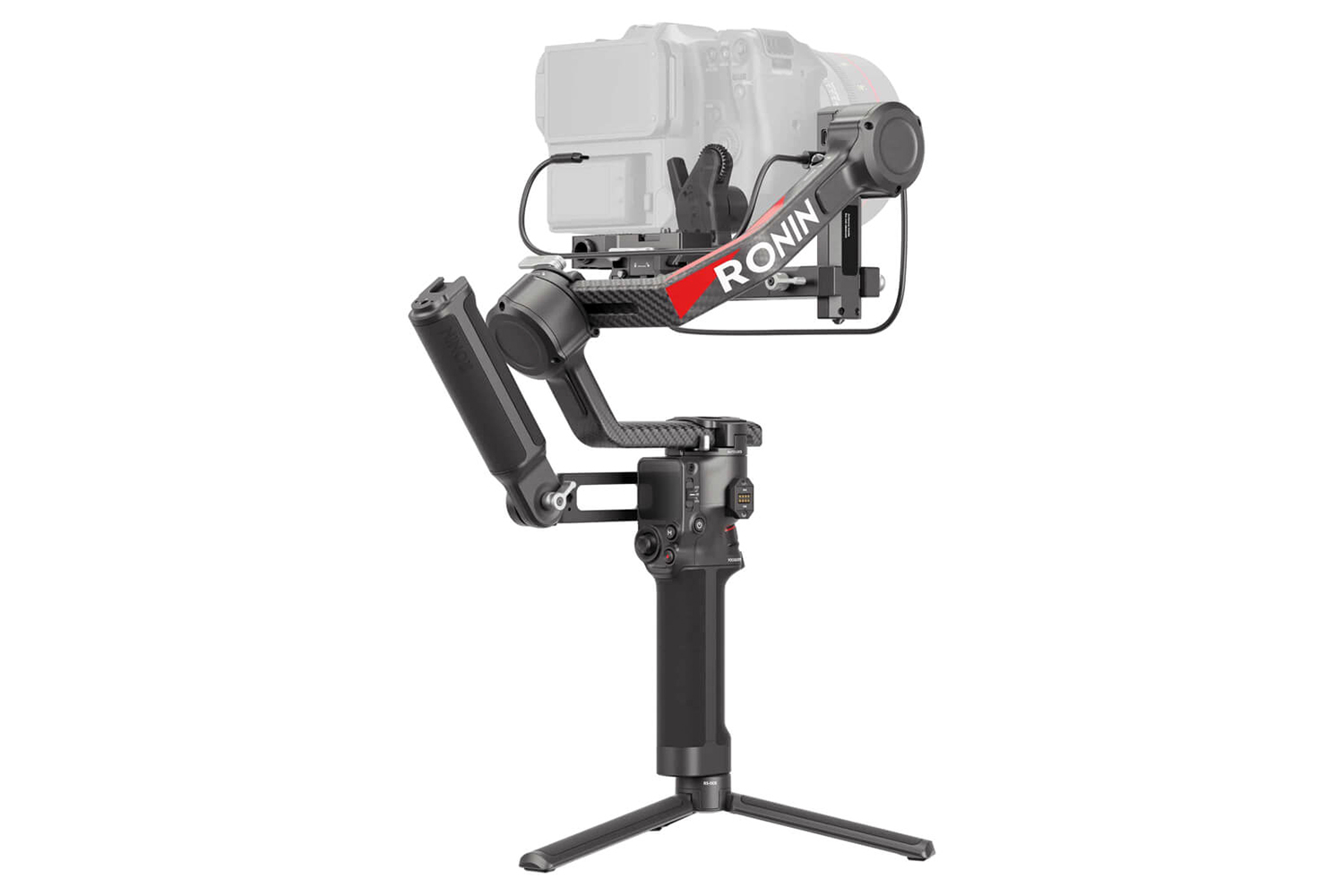

DJI RS4 Pro Combo

Approx. 2.4X Battery Runtime, All-Scenario Solutions

Extend runtime up to 29 hours [2] with the RS BG70 High-Capacity Battery Grip.[3] And choose from various handheld configurations with RS SDK protocol. [4]

Supports Dual Focus & Zoom Motors With Remote Control

Get precision focus and zoom simultaneously by installing two Focus Pro Motors. [5] Pair with the Focus Pro Hand Unit and High-Bright Remote Monitor [2] and get refined remote gimbal and focus control.

Lidar Focusing: 76,800 Ranging Points Within 20 M [6]

Solo cinematographers can now experience more accurate, distant, and intelligent LiDAR autofocus. [7] The next-gen ActiveTrack Pro can firmly lock on to a moving subject.

Lidar & Transmission Interconnectivity

With the Focus Pro LiDAR to DJI Transmission Cable Hub, [2] RS 4 Pro can power LiDAR and the DJI Video Transmitter simultaneously, [2] achieve LiDAR Waveform, [8] and convenient control.

4.5Kg (10Lbs) Payload Capacity With A 20% Increase In Motor Torque [9]

The carbon fiber axis arms are capable of accommodating mainstream mirrorless/cinema camera and lens setups. The gimbal provides greater power redundancy once balanced.

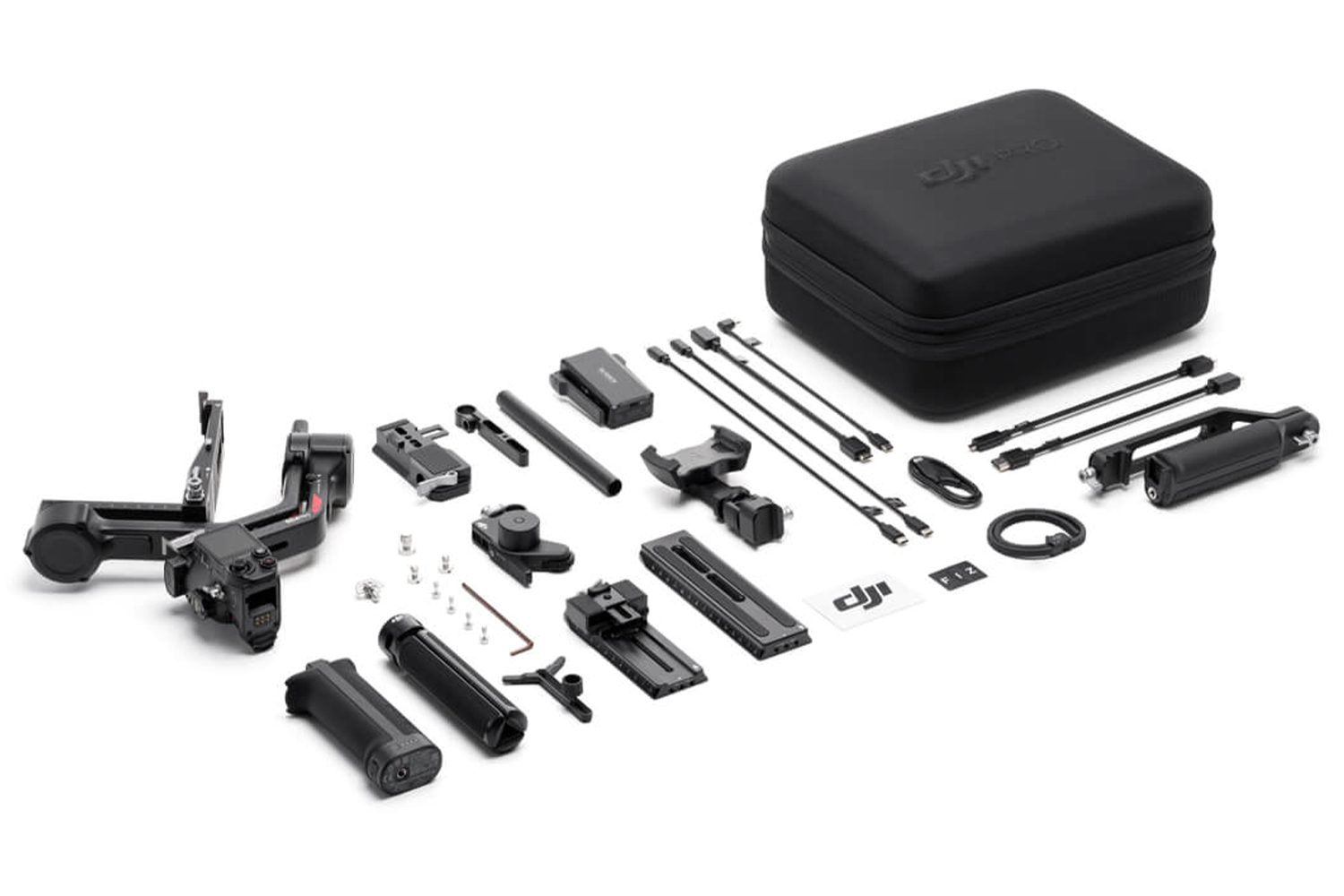

What's in The Box

• 1 × gimbal
• 1 × bg30 battery grip
• 1 × quick-release plate (arca-swiss/manfrotto)
• 1 × extended grip/tripod (metal)
• 1 × briefcase handle
• 1 × lens-fastening support (extended)
• 1 × multi-camera control cable (USB-C, 30 cm)
• 1 × USB-c charging cable (40 cm)
• 1 × screw kit
• 1 × carrying case
• 1 × dji logo sticker
• 1 × USB-c power cable (20 cm)
• 1 × mini-HDMI to mini-HDMI cable (20 cm)
• 1 × mini-HDMI to HDMI cable (20 cm)
• 1 × mini-HDMI to micro-HDMI cable (20 cm)
• 1 × ronin image transmitter
• 1 × focus pro motor
• 1 × fiz sticker
• 1 × focus pro motor rod mount kit
• 1 × focus gear strip
• 1 ×lower quick-release plate (extended)
• 1 × phone holder

Notes:

* the dji ronin app is required for activation when using dji rs 4 pro for the first time

1. the gimbal requires rebalancing after switching between horizontal and vertical shooting

2. compared with dji rs 3 pro

3. sold separately

4. the dji rs 4 pro combo includes a dji focus pro motor. for the standalone version, the motor is sold separately

5. the 77% improvement in ranging points and the tripling of human-subject focus distance were measured in comparison to the DJI lidar range finder (rs). the 30% increase in motor speed was measured in comparison to the DJI rs focus motor (2022)

6. requires enabling the 2x zoom display function on the DJI rs 4 pro touchscreen

7. this value indicates the response latency between the DJI focus pro hand unit and the DJI focus pro motor

8. for more details on camera and lens compatibility, please refer to the Ronin series compatibility search page

9. lidar waveform is only available when dji rs 4 pro is paired with a dji focus pro motor

10. measured in a 25° c (77° f) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal)

11. measured in a 25° c (77° f) indoor environment

Product Features:

• Expansion port: Cold shoe
• Operating current/voltage: 900 ma/3.7 v
• Operating temperature: 0° to 45° c (32° to 113° f)
• Transmission range: 200 m (srrc/fcc)100 m (ce)
• Bluetooth transmitter power: < 8 dbm
• Connections: Bluetooth 5.1charging port (usb-c)
