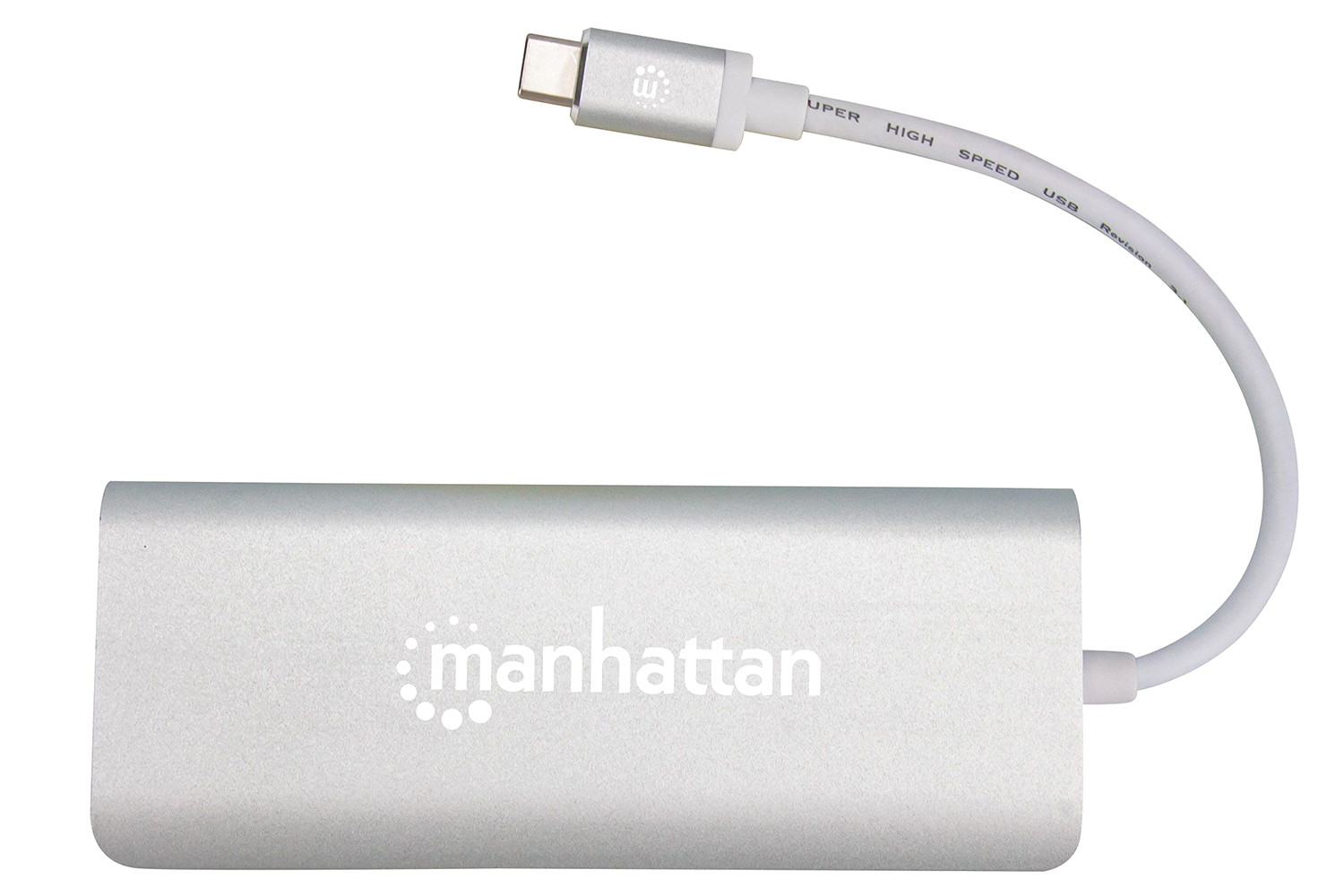

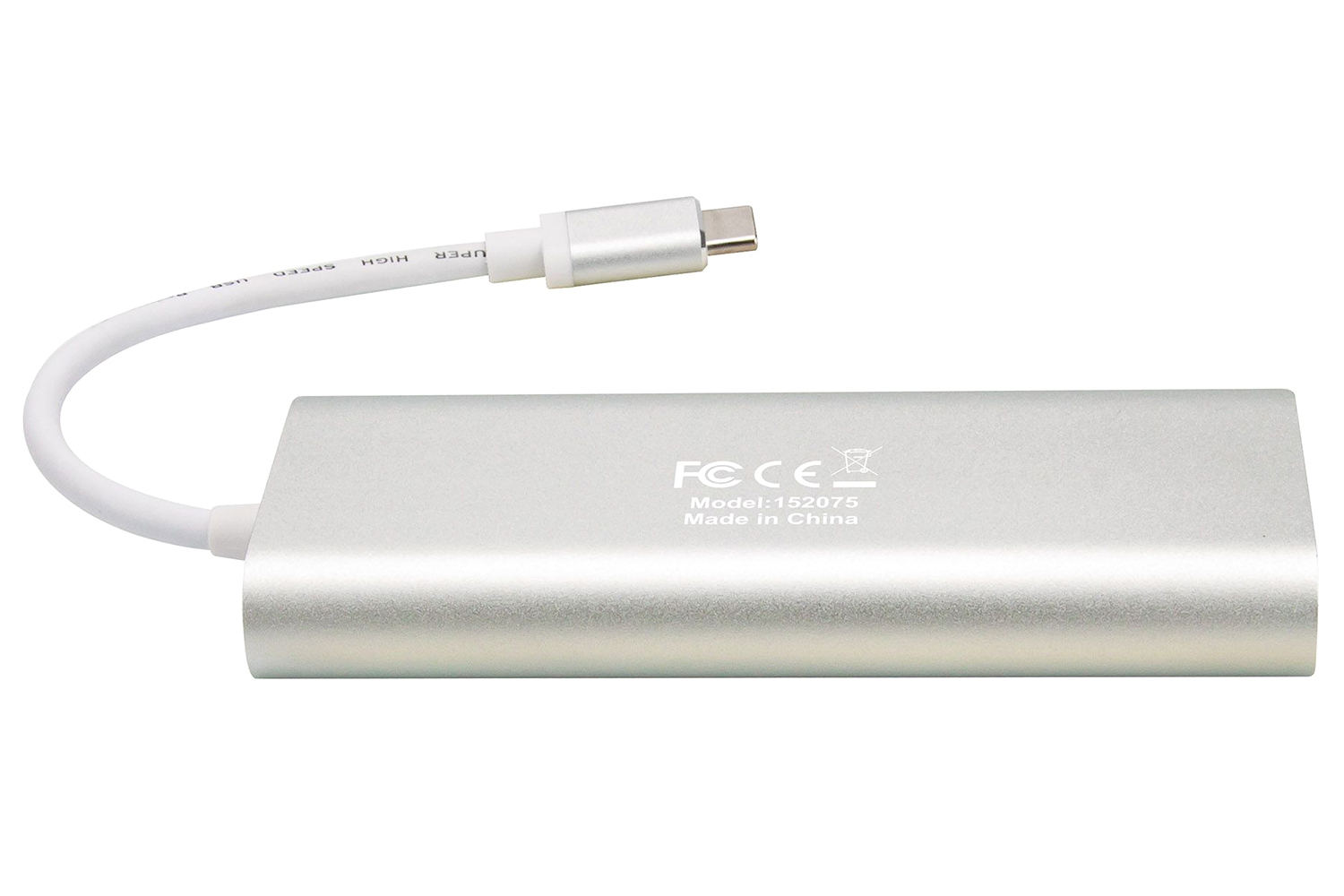

Manhattan SuperSpeed USB-C Multiport Adapter

The Manhattan SuperSpeed USB-C Multiport Adapter establishes a fast, simple and convenient link between a newer USB type-C-equipped media source (computer, tablet, smartphone, etc.) and an existing HDMI display (monitor, projector, etc.), in either mirror or extended display mode. This hub creates a mini-workstation by adding two of any USB 3.0 (and earlier) peripheral, such as a mouse, keyboard, hub, external memory device and more using the integrated USB-A ports, Gigabit network connection and SD card slot.

The Manhattan SuperSpeed USB-C Multiport Adapter is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your type-C device. Its design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly.

Standards and Certifications:

• USB 3.2
• HDMI
• HDCP 1.4
• CE
• FCC
• RoHS2
• WEEE

General:

• Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 1080p, 3840 x 2160p at 30 Hz, 4K
• USB-A ports: 5 Gbps
• Supported flash cards: SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile
• Supported flash cards: SD, SDHC and SDXC; up to 128 GB Transfer speed: up to 40 Mbps
• 34-AWG cable gauge
• Bus powered
• USB-C PD Charging Port: 60 W (20 V at 5 A)
• USB-A Total Output: 5 V, 2 A
• Mylar and aluminum shielding
• Withstanding voltage: 300 VDC
• Insulation resistance: 10 MΩ
• Conductive resistance: 5 Ω

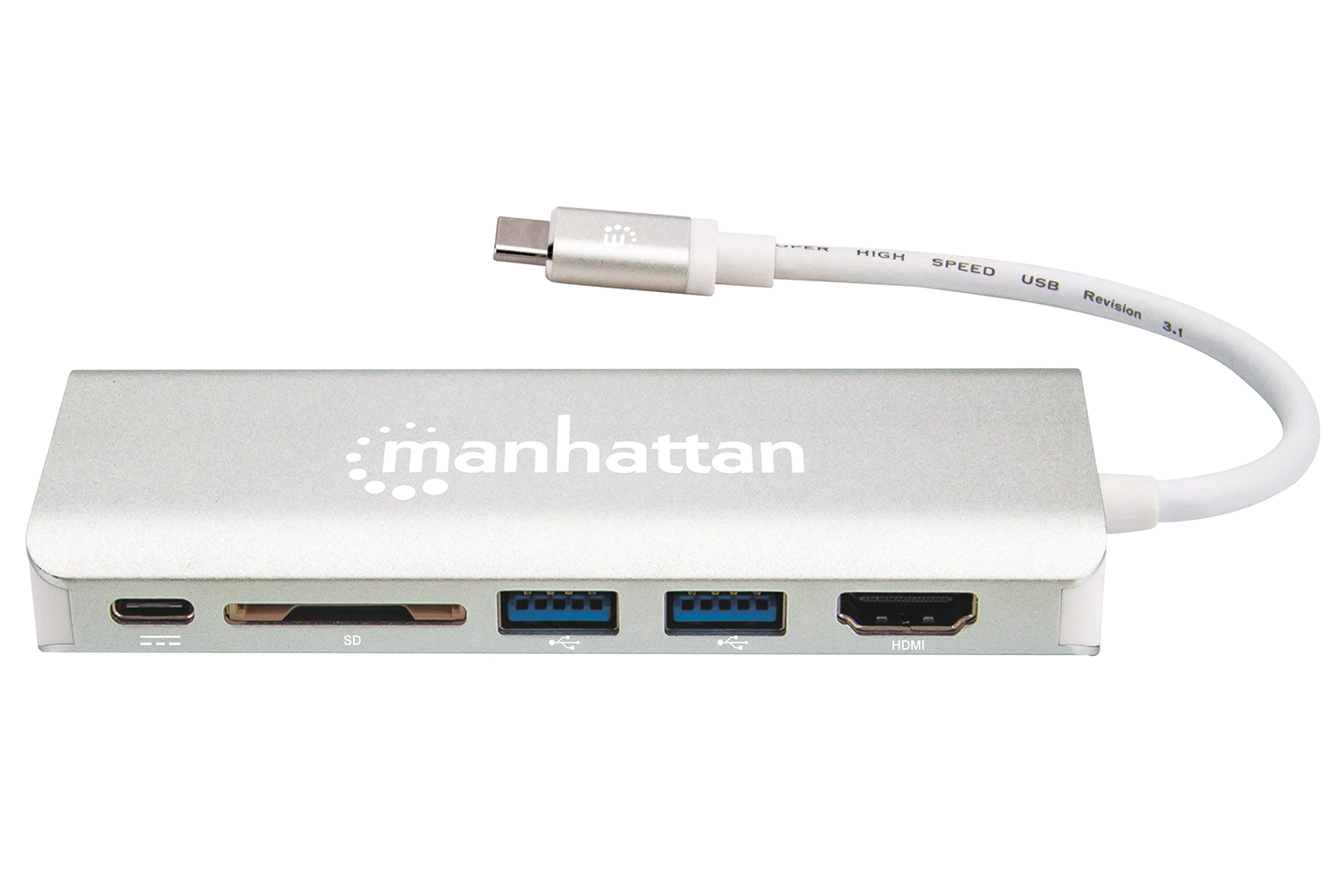

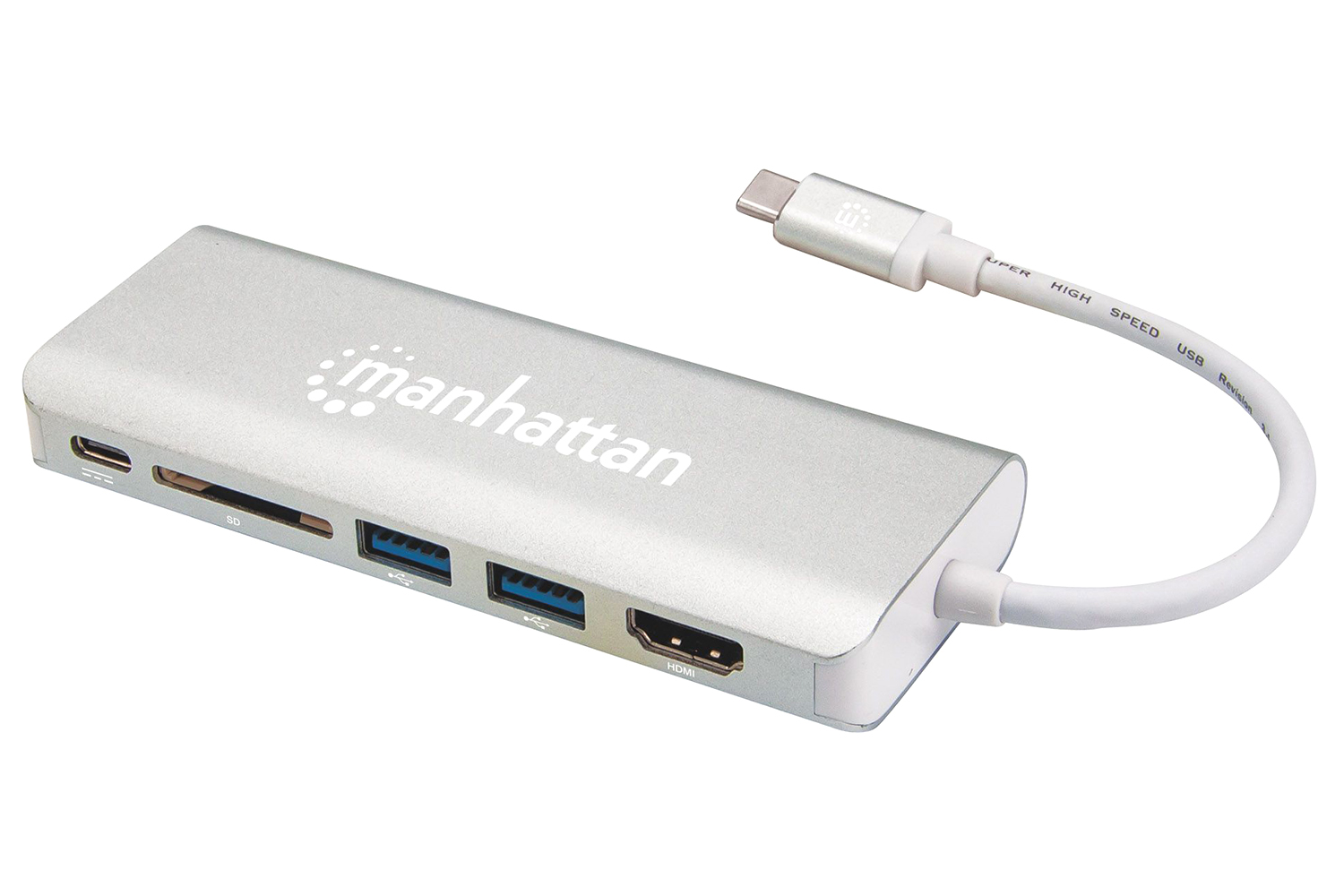

Connection Input:

• One USB-C 24-pin, male Outputs:
• One HDMI 19-pin, female
• One 10/100/1000 Mbps RJ45, female
• Two USB-A 4-pin, female
• One SD memory slot
• One USB-C 24-pin, Power Delivery, data sync, female

Operating Environment:

• Operation Temperature: 0 – 45°C (32 – 113°F)
• Storage Temperature: -10 – 70°C (14 – 158°F)
• Humidity (noncondensing): 10 – 90%

System Requirements:

• Windows XP/Vista/7/8.1/10 or Linux or Mac 10.7.1 or above

Product Features:

• Connects a USB type-C device to one HDMI display, two USB 3.0 type-A devices, Ethernet access through one 10/100/1000 Mbps RJ45 port, ample power for attached devices through one USB-C Power Delivery (PD) port and one memory card through one SD card reader
• Delivers Ultra-High-Definition (UHD) video and audio to an HDMI monitor, projector or other display device
• Mirror or extended-display modes to support video resolutions up to 1080p@60Hz (1080p) or 3840x2160 at 30 Hz (4K, Full UHD)
• One gigabit ethernet (10/100/1000 Mbps) port for faster downloads, media streaming and gaming
• Two USB 3.0 type-A ports to connect mice, keyboards or portable memory devices (and more) or to charge and sync portable electronic devices
• USB-A superspeed port offering 5 Gbps data transmission speeds
• Easy access to media and content management with read/write/copy SD port; supports automatic card detection and data transfer speeds up to 40 Mbps
• Supports USB power delivery (PD) function up to 60 W; requires an external PD charger available from Manhattan
• Durable aluminum housing, making it the perfect desktop or travel companion
• Compatible with all USB-C DP-Alt-mode-supported desktops, notebooks and tablets including apple macbook, iPad pro, chromebook, pixel and more
• Compliant with displayport 1.2 alternate mode (DP alt mode)
• Plug and play
• Molded PVC boot and strain relief
