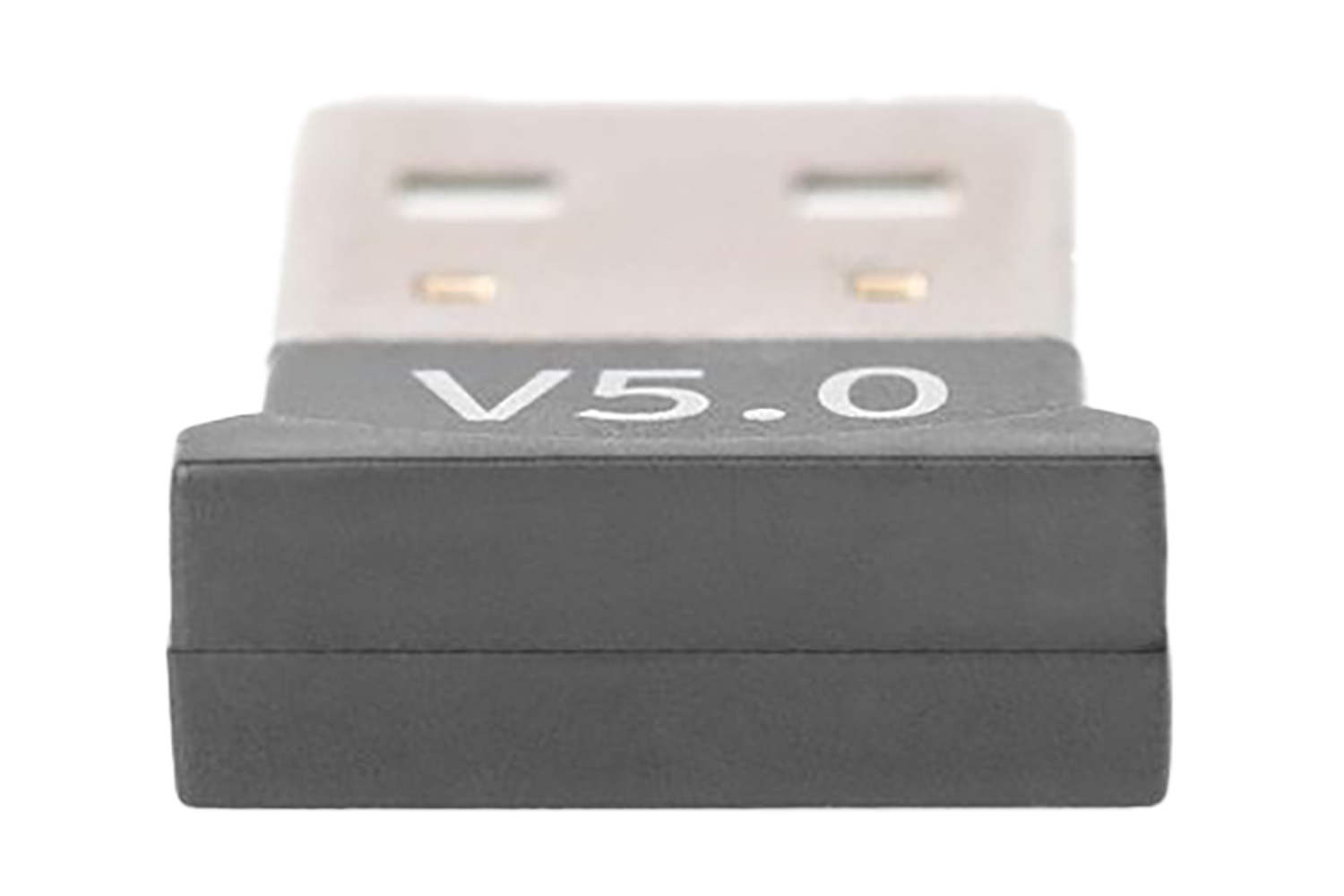

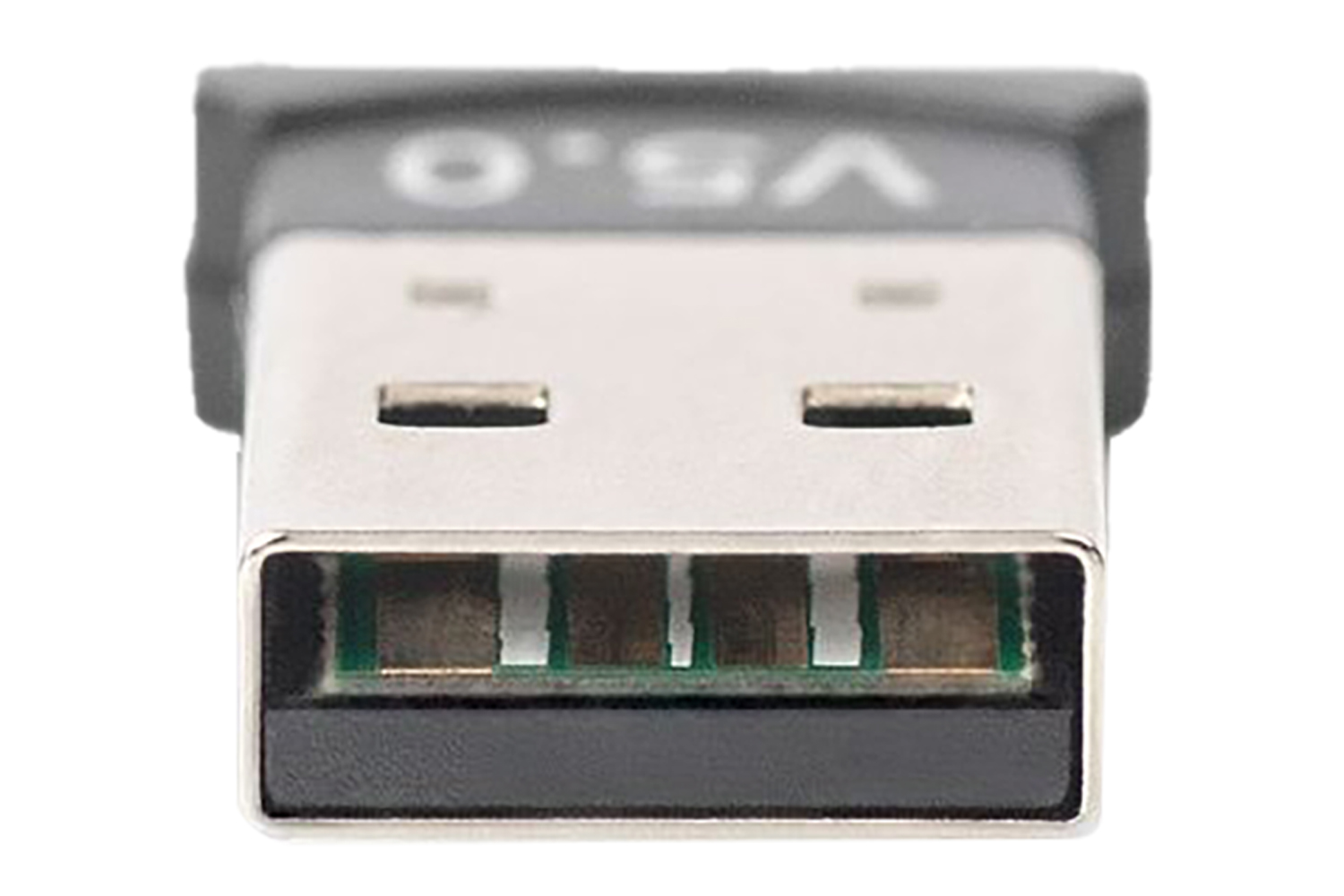

Digitus Bluetooth 5.0 Nano USB Adapter

Bluetooth 5.0 Dongle

Extends notebook, PC or gaming consoles by a Bluetooth 5.0 interface with up to 3 Mbps.

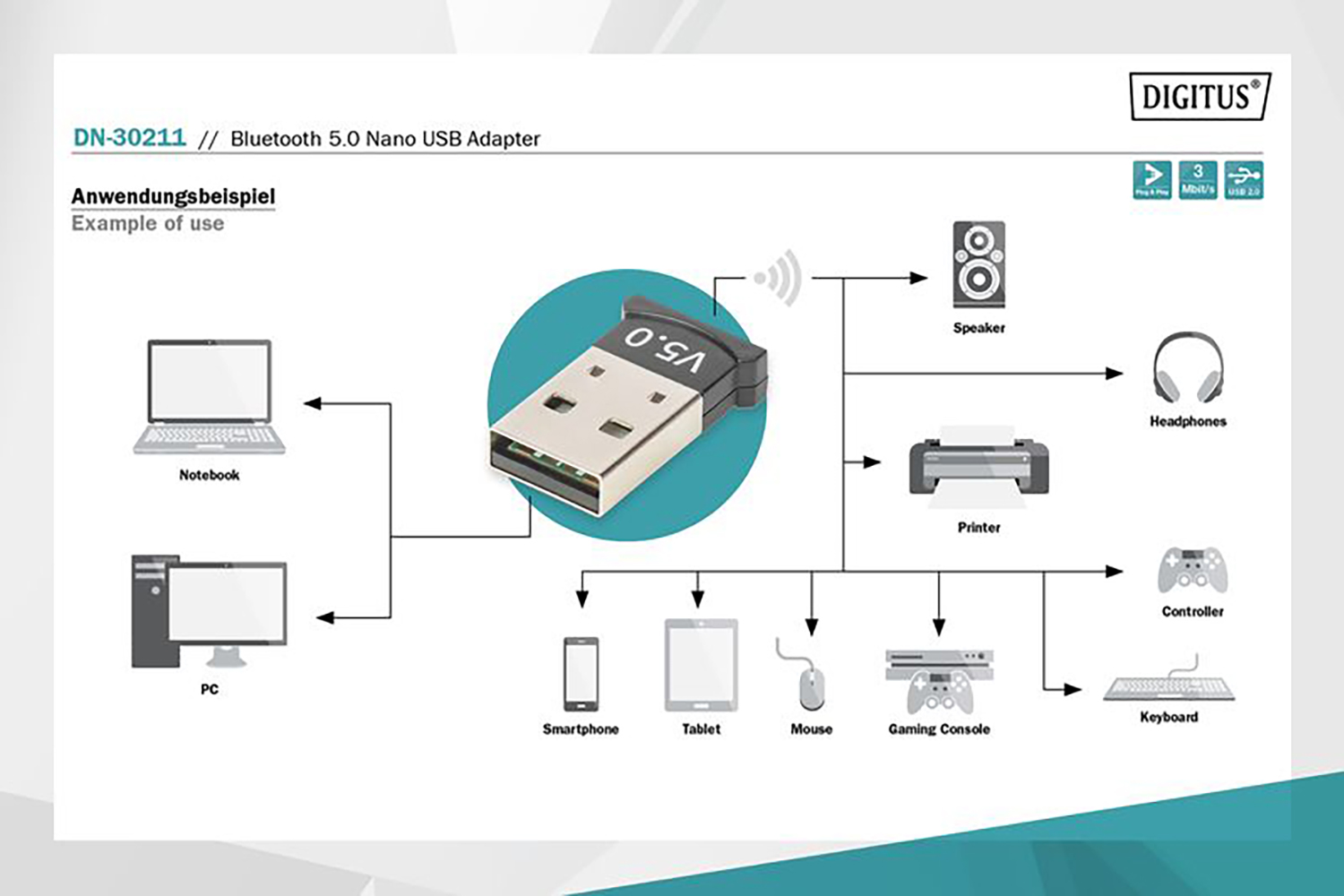

With the DIGITUS Bluetooth USB Adapter, you can use the fast Bluetooth 5.0 standard with high transmission rates of up to 3 Mbps. This allows you to transmit files, images or music quickly and in high quality. The adapter can be used for mobile devices, for connections between computers, for connecting Bluetooth accessories of all kinds and is supported by the most common gaming consoles. These include controllers, headphones, speakers, keyboards, mouses, printers, tablets or smartphones. It is also possible to use dual mode, LAN function, printer control and the serial port function (SPP). The range of the Bluetooth dongle is between 10 and 20 meters depending on the on-site conditions. The BLE function ensures that the power consumption is always adapted to the capacity that is currently required.

Technical Specification:

• Bluetooth version: 5.0-compatible
• Transmission rate: 3.0 Mbps
• Range: 10 - 20 m depending on the environment
• Chipset: BR8051A01
• Frequency range: 2.4 GHz (2400-2484 MHz)

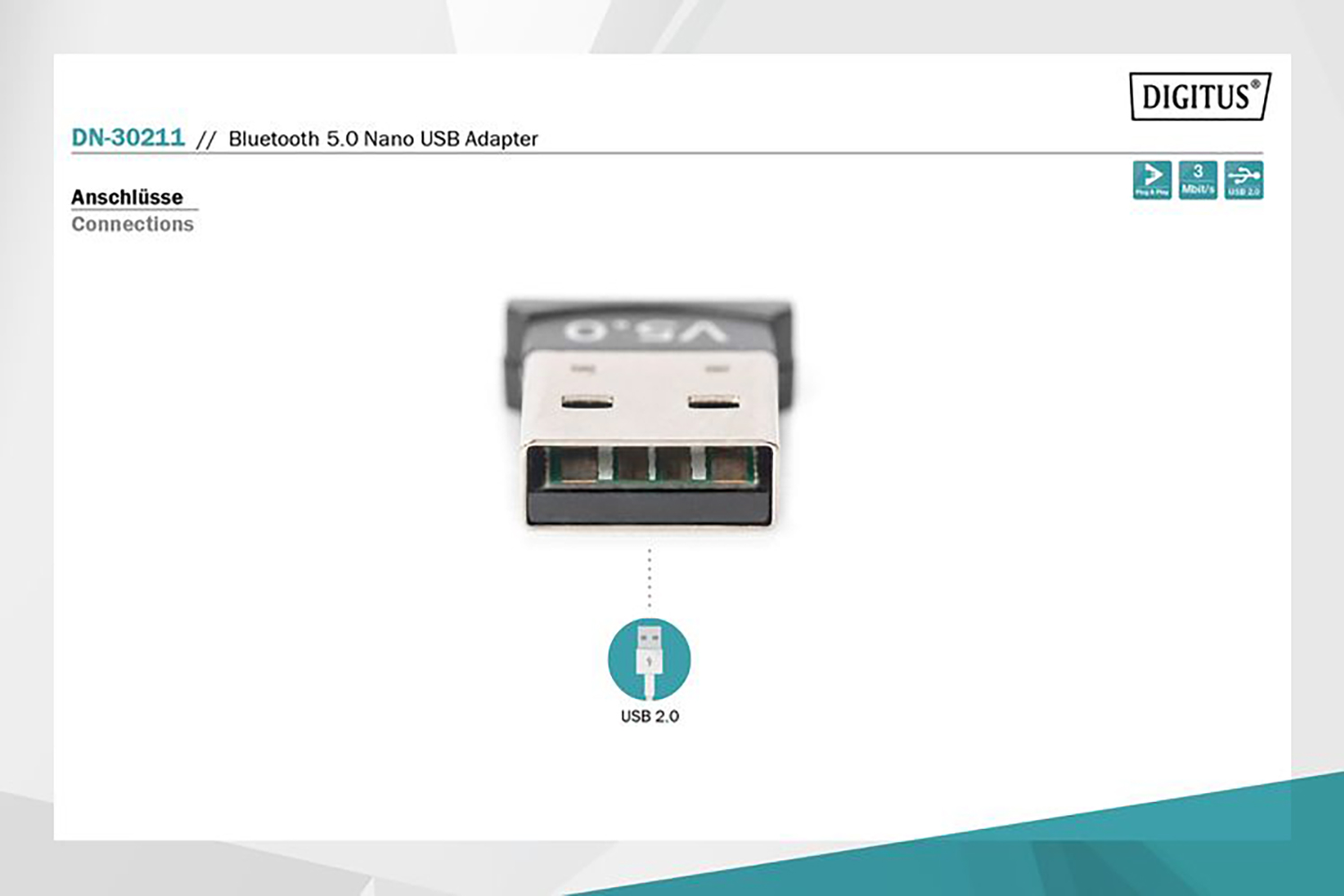

• Power supply: 5 VDC via USB interface
• Supports low power consumption (BLE)
• Supports Dual Mode
• Supports more than 3 Bluetooth devices
• Supports Bluetooth service sharing
• Supports high-quality audio (A2DP, HFP)
• Supports Bluetooth LAN (PAN)
• Supports Bluetooth image transfer function (BIP)
• Supports serial port function (SPP)
• Supports Bluetooth printing service (HCRP)
• Supports Bluetooth file transfer service (FTP)
• Supports Bluetooth information exchange service (OPP)
• Supports Bluetooth dial up service (DUN)
• Supports real-time positioning system (RTLS)
• Supported protocols: GAP, HFP, HSP, PBAP, A2DP, AVRCP, FTP, OPP, MAP, HID, DUN, PAN, GATT, IAP2, ANCS, SPP, BT5.0 and downward compatible
• Supported operating systems: Win 10, 8, 7, XP and Linux
• Operating temperature: 0 °C to 70 °C
• Operating humidity: 40% - 60%
• Dimensions: W 1.45 x D 0.5 x H 2.3 cm
• Weight: 1.08 g
Manufacturer’s Notice: Some notebooks feature their own Bluetooth functionality. To use the Bluetooth USB adapter, the existing Bluetooth interface must be deactivated.

Product Features:

• Supports communication between all kinds of mobile devices, computers and compatible Bluetooth accessories
• Supports high-quality audio transmission (music streaming)
• Supports Bluetooth Dual Mode and LAN function (PAN) including exchange of information (OPP)
• Supports more than 3 Bluetooth devices simultaneously
• Supports serial port function (SPP) and printer support via HCRP
• Send images (BIP) or files (FTP) and use dial-up services (DUN)
• Low power consumption adapted to the current output thanks to BLE (Bluetooth Low Energy)
• Downward compatible with previous Bluetooth versions
• Plug and Play – Just plug in and get started!
