Description
Ultra-fast Powerline Speed
HomePlug AV2 standard compliant, the high-speed data transfer rate of up to 1000Mbps, ideal for Ultra HD streaming and online gaming.
Gigabit Ethernet for Reliable Connections
OneGigabit Ethernet port provides reliable high-speed wired connections for game consoles, smart TVs, STB and more.
300-meter Range
Up to 300-meter range over the household power circuit.
Power Saving
Automatically switches to Power-Saving mode when not in use, reducing its energy consumption by up to 85%.
Plug and Play
Allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away.
No New Wires
No new wires, use existing electrical wiring to expand your home network.
TP-Link tpPLC
Allows you to easily manage your network using the intuitive tpPLC App or the tpPLC utility.
Pair Button
Press the “Pair” button on each adapter to create a more secure network.
Extend Reliable Gigabit Network through Electrical Wiring

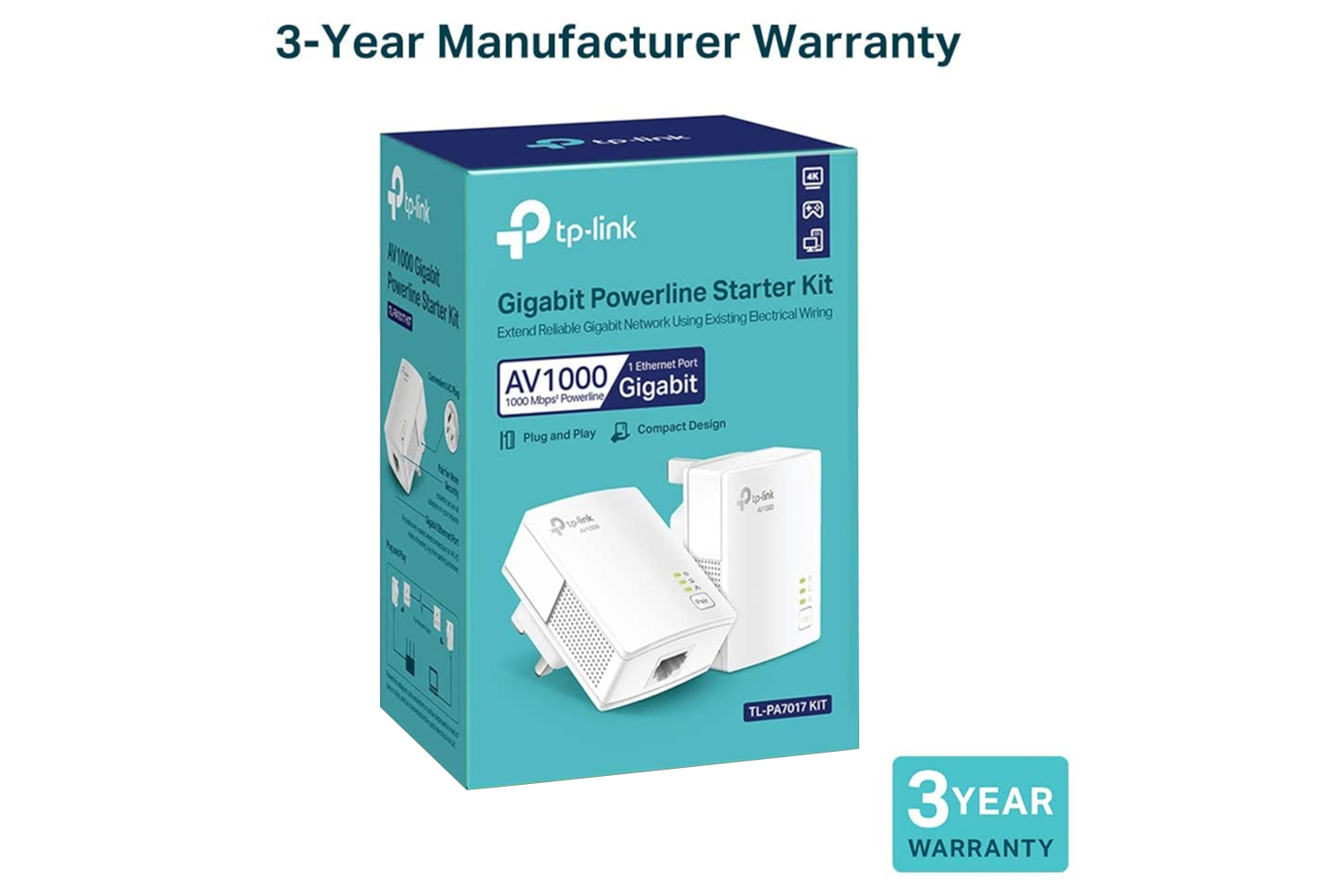

AV1000 Gigabit Powerline Starter Kit

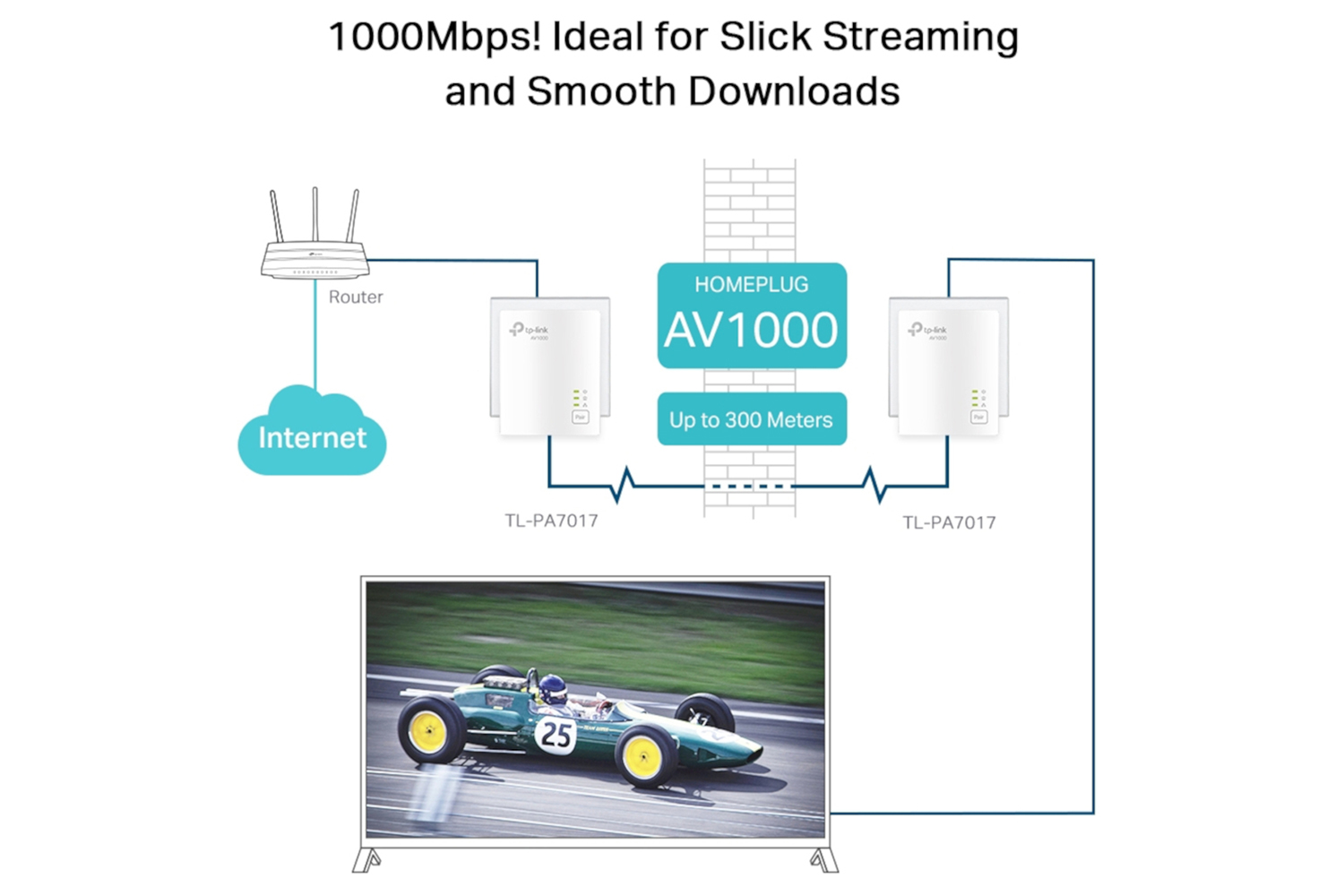

AV1000 Speeds and 300 Meter Range
Using advanced HomePlug AV2 technology, ensures a stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption to reliable powerline links.

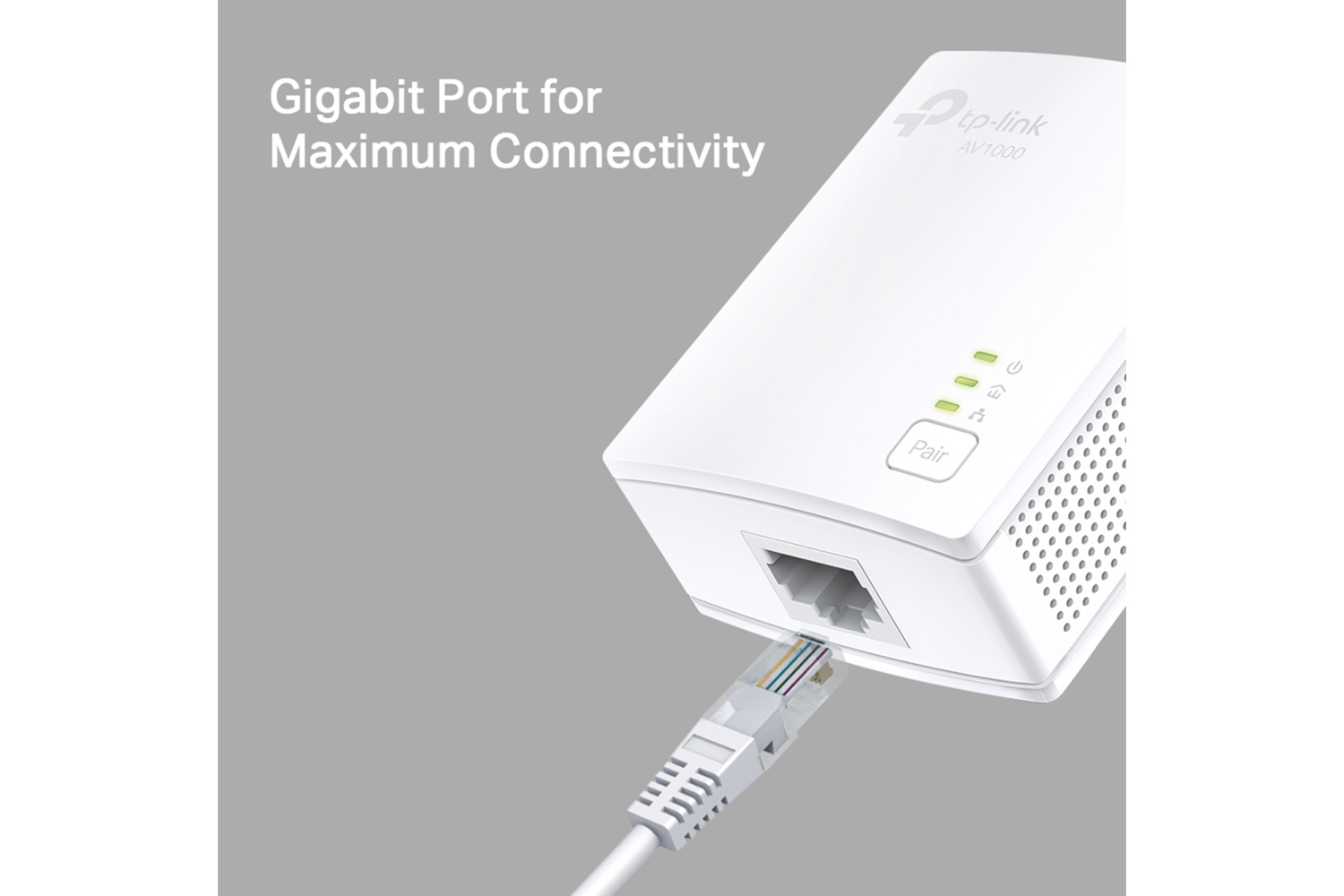

Gigabit Port for Maximum Connectivity
With a Gigabit Ethernet port allows users to connect a bandwidth intensive device to the Internet with high speeds and ensure the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.
Plug and Play, No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

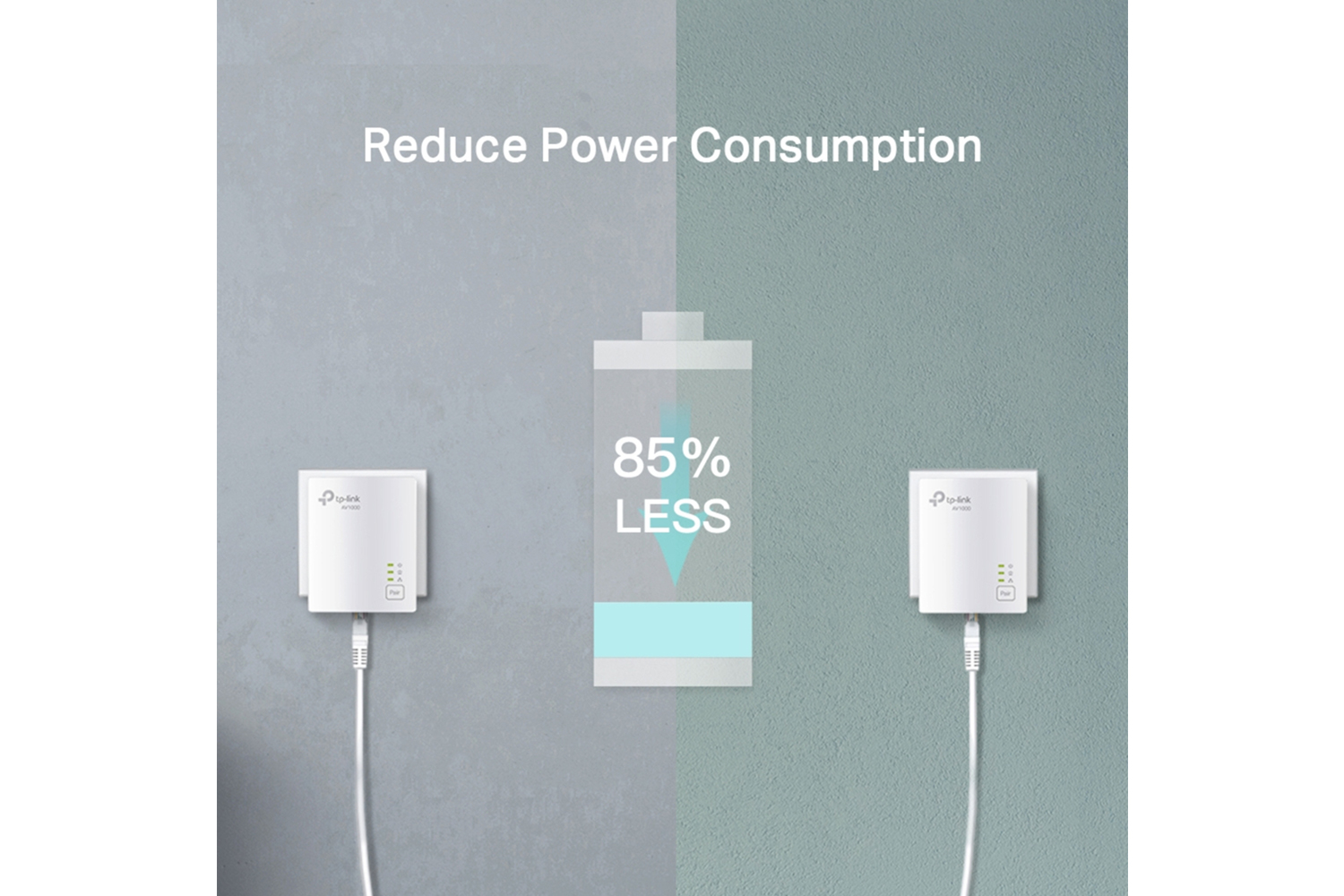

Reduce Power Consumption by Up to 85%
A new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to Power-Saving mode reducing its energy consumption by up to 85%.
System Requirements
- Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
Compatible
- Compatible with any powerline adapters /extenders and routers
Hardware Features
- Plug Type: US
- Interface: Gigabit Ethernet Port
- Button: Pair/Reset button
- Range: Up to 300 meters/1000 feet over existing electrical wiring
Standards And Protocols
- HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,
- IEEE 802.3u, IEEE 802.3ab
Power Consumption
- Maximum: 2.7W (220V/50Hz)
- Typical: 2.3W (220V/50Hz)
- Standby: 0.5W (220V/50Hz)
Software Features
- Modulation Technology: OFDM (PLC)
- System Requirements: Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux
Encryption
- Powerline Security: 128-bit AES Encryption
Environment
- Operating Temperature: 0°C~40°C (32°F ~104°F)
- Storage Temperature: -40°C~70°C (-40°F ~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Product Features:
- 300 meters over electrical circuit
- Pair and reset button
- Plug and play
- LED Indicator - Power, Powerline, Ethernet
- Operating Temperature 0°C~40°C (32°F ~104°F)
- Power saving mode
TP-Link AV1000 Gigabit Powerline Starter Kit is rated
4.7 out of
5 by
56.
Rated 5 out of
5
by
Dave from
Recommend for stable high speed connection
worked as expected got my speed from 60mb to approx 100mb and a solid connection with no dropout
Date published: 2021-02-26
Rated 5 out of
5
by
Angie from
Works incredibly well 1 floor up from main unit
Was skeptical they'd work considering the 2nd unit was half a floor up and 2 walls in between. I've now tested streaming multiple live shows on Twitch simultaneously and not a single show was lagging (even with 4 other individuals in the house using the WiFi.) Incredibly happy with the product. This set was actually recommended by staff of our broadband provider as a personal preference they used in their own house and I'm glad I took their advice.
Date published: 2021-06-17
Rated 5 out of
5
by
Anonymous from
Excellent product and even better customer care
I purchased these off yourselfs over 30 or 40 times it’s a great quality product that works really . On one occasion I did receive one faulty box of them but there were kind over the phone I went to my local Harvey Norman and they exchanged it for a new one again no questions asked . Absolute brilliant customer service and its a brilliant product also . I would recommend any one ordering this item to buy through this crowd
Date published: 2024-03-10
Rated 5 out of
5
by
Cathal from
Life saver
Living in an old house with incredibly thick walls makes wireless connections to the router almost impossible and it's too far to run a cable through the house.
This solved that problem perfectly. Clean and tidy, no mess of cables, and it works very well.
Up at the router you get ~250Mbs, at the opposite end of the house I'm getting ~80 - 100Mbs
Date published: 2021-12-30
Rated 5 out of
5
by
David from
Really reliable and worth the money
Cannot fault this device at all. Works as described and was very easy to set up. Once it was connect my internet speed jumped about 30 percent and is much more stable. I'm able to work at home much more effectively. I've also tried it out on the PS4 which drops out when streaming or playing multiplayer, i had no problems.
Date published: 2022-02-10
Rated 2 out of
5
by
Jf1991 from
Poor connection
Have a 3 story house and powerline adapter was poor on all floors. Barely got speeds of 80mbs even though 500mbs connection
Date published: 2021-03-08
Rated 5 out of
5
by
Mike T from
Easy to set up, great speed boost.
Incredibly simple to set up - Plug one end into the wall and your router. Plug the other into any wall-socket, connect your ethernet cable - Done. Mine was an upgrade from a model several years old and I gained approx. 40-80Mbps speeds to the home office.
Date published: 2022-09-15
Rated 4 out of
5
by
Alan from
Good product for wired devices
Good product for boosting internet signal to devices connected via ethernet cable. If seeking to eliminate WiFi deadspots for wireless devices as well as wired, similar tp-link products are available which will do both.
Date published: 2023-02-20
