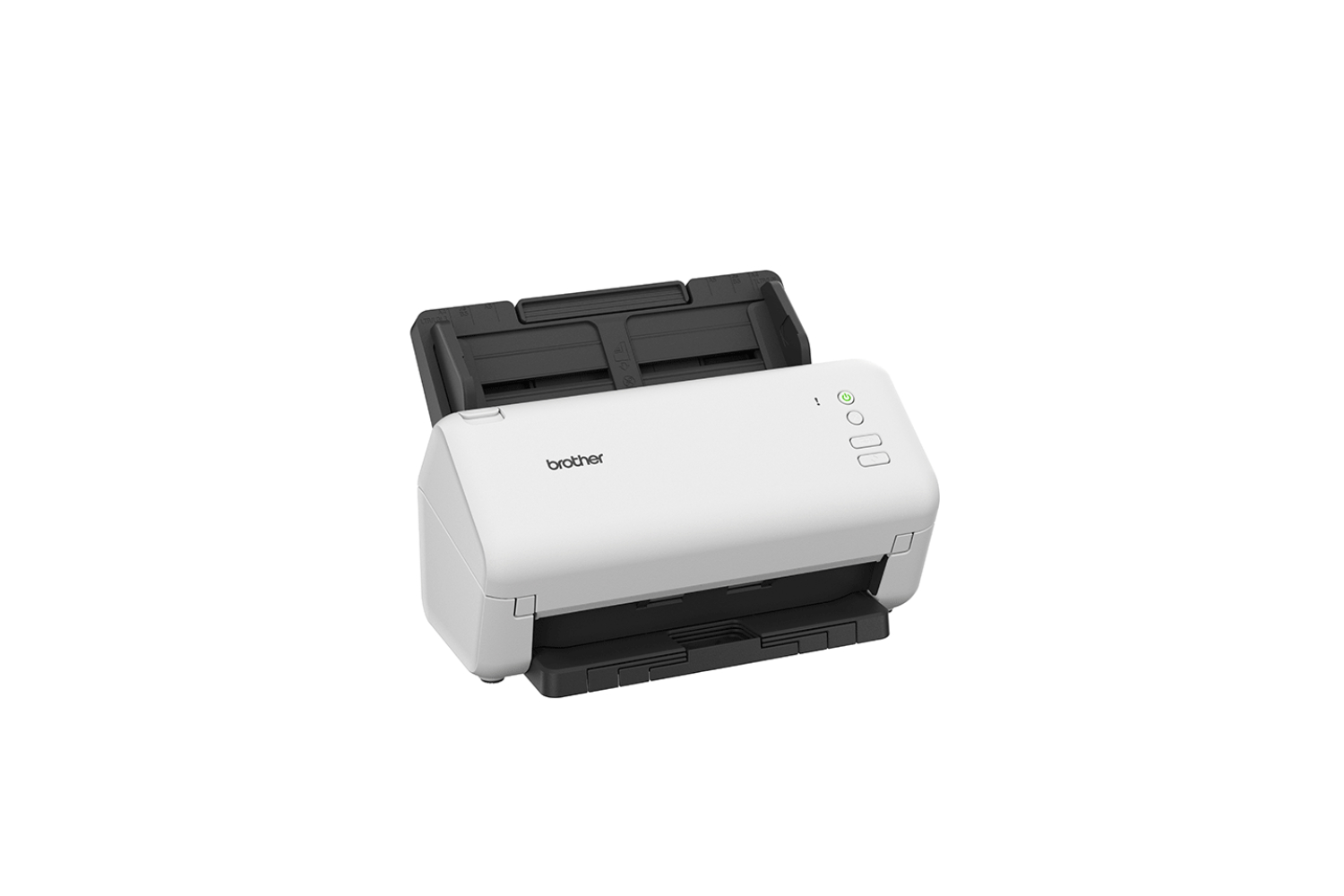

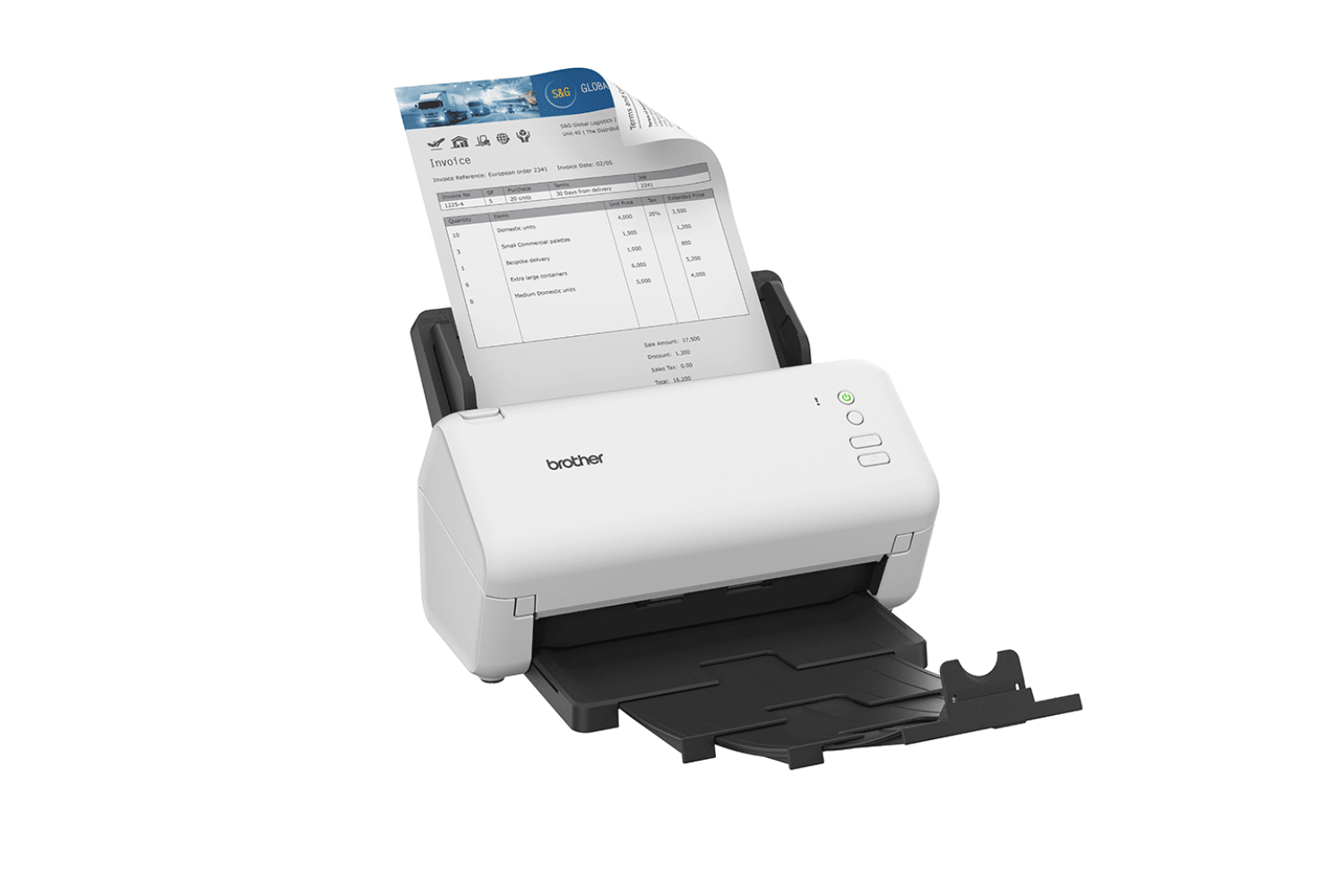

Brother ADS-4100 Desktop Scanner

With simplicity built in. Robust, easy-to-use, every day scanner. Great for digitsing a range of media at home or in the office.

Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.

Advanced image processing.

Driver compatibility with Twain (Win and macOS), WIA, ICA, Linux Sane.

General

• Function: Scan
• Control panel: Keys
• Backup clock: Up to 24 hours
• Form factor: Desktop
• Scanner type: Dual CIS, LED Array light source

Scanning

• 2-Sided scan
• One sided scan speed A4 Mono: 35
• One sided scan speed A4 colour: 35
• Two sided scan speed A4 mono: 70
• Two sided scan speed A4 colour: 70
• Resolution: Optical (600 x 600dpi), Interpolated
• Colour depth: 24 Bit colour processing, Output, Input, 48 Bit colour processing
• Inkjet scan grey scale: 256 levels 8 bit

Media Specifications:

• Automatic document feeder: 60
• Media sizes: Direct paper path (Width 50,8 - 215,9mm), Height 50,8 - 355,6mm, Long paper 5000mm
• Media types: Plain paper, Thin paper, Thick paper, Thicker paper, Recycled paper, Business card, Plastic card
• Paper weight: 40 - 200gsm
• Paper thickness: 0,08 ~ 0,28mm
• Plastic card size: Length (ISO) (85,60mm), Width (ISO) (53,98mm)
• Plastic card thickness: Up to 1,32mm

Scanner Functions

• File format support: JPEG, PDF, TIFF
• Standard functions: Scan to (PC, Image)
• Direct scan

Drivers

• Scan drivers: Linux ( SANE), Windows (Windows 11, Windows 10, TWAIN, WIA, Windows 8,1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2), Macintosh ( TWAIN, 10,14,x, ICA, macOS), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software.

Fleet Management Tools

• Windows Software (Brother iPrint&Scan, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials Lite, Image Folio), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7, Image Folio), Utilities, Easy Setup.

Operating Environment

• Power requirement: AC (100-240V AC 50/60Hz), DC (24V, 1.9A)
• Sound power: Scanning (<59dB)
• Operating: Humidity % (20 - 80%), Degrees celsius (5°C - 35°C), Degrees fahrenheit (41°F - 95°F)
• Storage: Humidity % (10 - 90%), Degrees celsius (-20°C - 60°C), Degrees fahrenheit ( -4°F - 140°F)
• Power saving modes: Sleep, Power down
• Wake up time: USB connected, approx 1 second from sleep mode

Connectivity

Security Features

Energy Consumption

• Power saving Modes: Sleep, Power down
• Power saving modes: Scanning (<59dB)

What's in the Box

• Power supply cord
• Detachable ADF
• AC adapter
• USB cable

Product Features:

• Scan up to 35 pages per minute
• 2-Sided scan up to 70 images per minute
• 60 Sheet automatic document feeder (ADF)
• Super speed USB3.0
• Scan directly to USB host
• Brother scan essentials lite software
