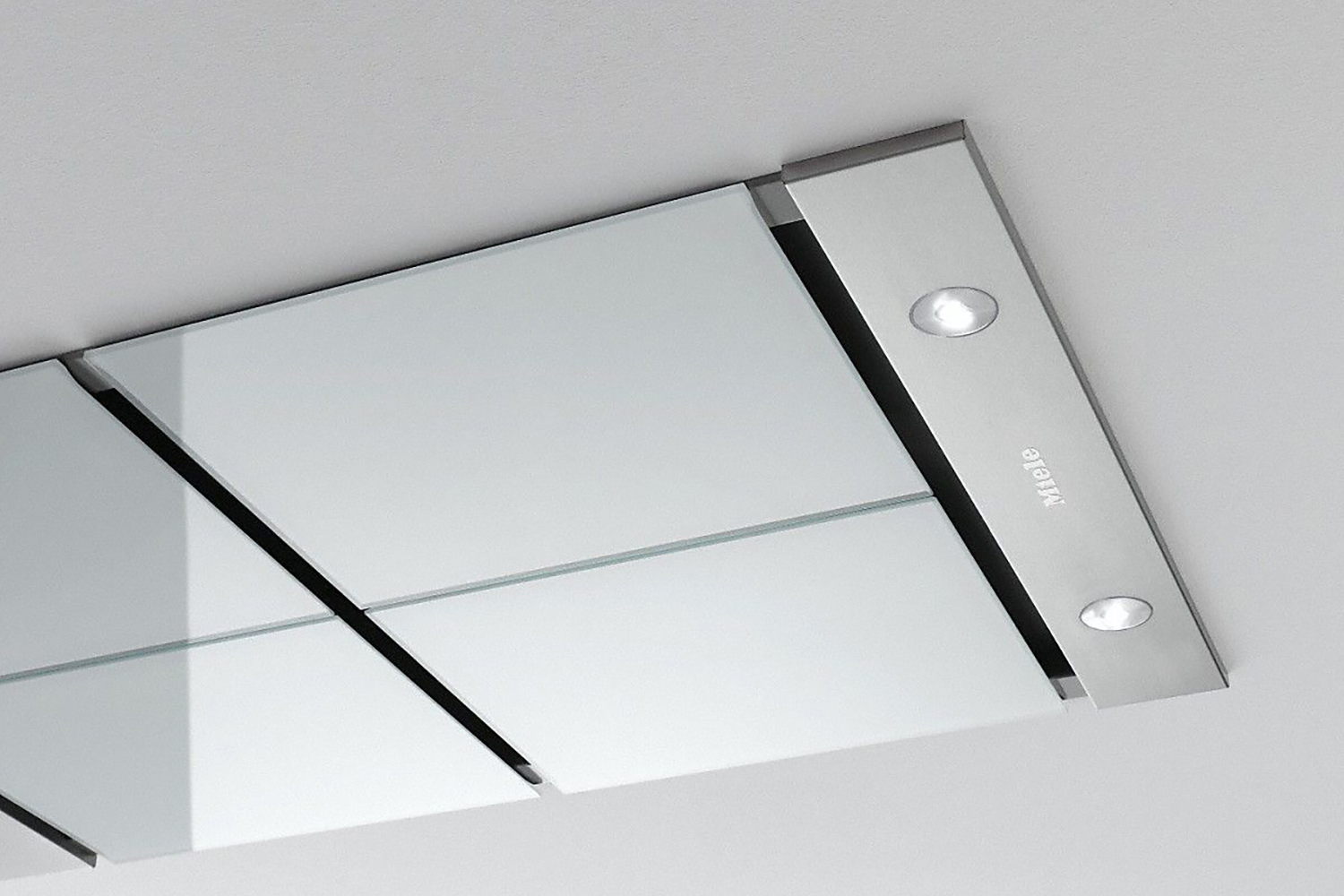

Miele 110cm Ceiling Extractor Cooker Hood | DA2906

ECO Motor: The Heart of Every Cooker Hood

The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 70 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.

Stainless Steel Grease Filters (10-Layer): Aesthetically Pleasing and Highly Functional

Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.

Miele Cleancover: Convenience and Safety in Detail

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.

Silence: Performance and Convenience as Standard

Efficient and very quiet. The motor, chimney and cooker hood canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.

Edge Extraction: Decorative Individual Panels to Conceal the Filters

In cooker hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapours are drawn in at the outer edges.

Active Airclean Filter: A Completely Odour-Free Kitchen

To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.

Safety Switch-Off: Always on the Safe Side

The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.

Run-on Function: Automatic Fan Run-on

The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.

Filter Indicator: Countdown Time Conveniently in View

If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

Operating Modes:

• Type of air guide: Convertible
• Recirculation conversion kit (order separately): DUU 2900
• Decor elements in glass (order separately): DRP 2900

User Convenience:

• Light-touch controls
• Power levels (excluding booster levels): 3
• Programmable booster level switch-off
• Run-on time: 5 / 15 min
• Grease filter saturation indicator programmable
• Active charcoal filter saturation indicator programmable
• Silence package

Cleaning Convenience:

• Easy-to-clean canopy interior: CleanCover

Efficiency and Sustainability:

• Annual energy consumption in kWh/year: 36.1
• ECO package

Filter System:

• Number of dishwasher safe stainless steel grease filters: 4

Lighting:

• Number x W: 4 x 3 W
• Light intensity in Lx: 200
• Colour temperature in K: 3500

Fan:

• Dual-action fan
• ECO motor (DC motor)

Air Throughput with Max. Duct Diameter in Extraction Mode (not for External Version):

• Air throughput in level 1 (m³/h): 220
• Air throughput in level 2 (m³/h): 300
• Air throughput in level 3 (m³/h): 450
• Air throughput in booster level 1 (m³/h): 740
• Sound power in level 1 (dB(A) re 1 pW): 42
• Sound power in level 2 (dB(A) re 1 pW): 48
• Sound power in level 3 (dB(A) re 1 pW): 57
• Sound power in booster level 1 (dB(A) re1pW): 69
• Sound pressure in level 1 (dB(A) re 20 µPa): 24
• Sound pressure in level 2 (dB(A) re 20 µPa): 31
• Sound pressure in level 3 (dB(A) re 20 µPa): 40
• Sound pressure in booster level 1 (dB(A) re20µPa): 52

Air Throughput in Recirculation Mode:

• Air throughput in level 1 (m³/h): 140
• Air throughput in level 2 (m³/h): 210
• Air throughput in level 3 (m³/h): 330
• Air throughput in booster level 1 (m³/h): 480
• Sound power in level 1 (dB(A) re 1 pW): 53
• Sound power in level 2 (dB(A) re 1 pW): 59
• Sound power in level 3 (dB(A) re 1 pW): 66
• Sound power in booster level 1 (dB(A) re1pW): 73
• Sound pressure in level 1 (dB(A) re 20 µPa): 35
• Sound pressure in level 2 (dB(A) re 20 µPa): 41
• Sound pressure in level 3 (dB(A) re 20 µPa): 49
• Sound power in booster level 1 (dB(A) re1pW): 56

Technical Data:

• Overall height for extraction mode and external mode cooker hoods in mm: 310 - 310
• Overall height for recirculation mode cooker hoods in mm: 310 - 310
• Minimum height above electric hobs in mm: 550
• Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650
• Hard-wired connection
• Total rated load in kW: 0.14
• Voltage in V: 230
• Fuse rating in A: 10
• Frequency in Hz: 50
• Number of phases: 1

Installation:

• Extraction ducting connection at top
• Extraction ducting connection on side
• Extraction ducting connection at top, rear, and side
• Diameter of extraction ducting connection in mm: 150

Included:

• Non-return flap
• Remote control

Product Features:

• Multi-zone edge extraction
• Safety switch-off
• Elegant design - harmonious in the kitchen environment
• Convenient operation – remote control
• Powerful - 740m3/h on the booster setting
• Energy-efficient and quiet - powerful ECO motor
• Variable: Edge extraction panels made of glass or stainless steel
