Description
This fold-out integrated hood with a high extraction rate for powerful performance is hidden in the upper cabinet unit.
Optimal Visibility and Atmosphere When Cooking - LED Light
The energy-saving LED lighting provides optimal visibility for your workspace so you can concentrate on your next masterpiece.
Technical Data:
- Typology : Built-in/Built-under
- Approval certificates: CE
- Type of control : Mechanical
- Length electrical supply cord: 150 cm
- Minimum distance above an electric hob: 500 mm
- Minimum distance above a gas hob: 650 mm
- Maximum output recirculating air: 416 m³/h
- Diameter of air outlet: 150 / 120 mm
- Grease filter material: Washable aluminium
- Connection Rating: 256 W
- Fuse protection: 10 A
- Voltage: 220-240 V
- Frequency : 50; 60 Hz
- Plug type: GB plug
- Installation typology: Wall-mounted
- Optional accessories: Recirculating kit LZ10IMA00
Design
- Integrated hood
- Mechanical
- Installation between cupboards
Performance:
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 70 dB(A) re 1 pW
- Power rating: 256 W
- Light Intensity: 188 lux
- Colour Temperature: 2700 K
- Electrical cable length 1.5 m
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 68.4 kWh/year*
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

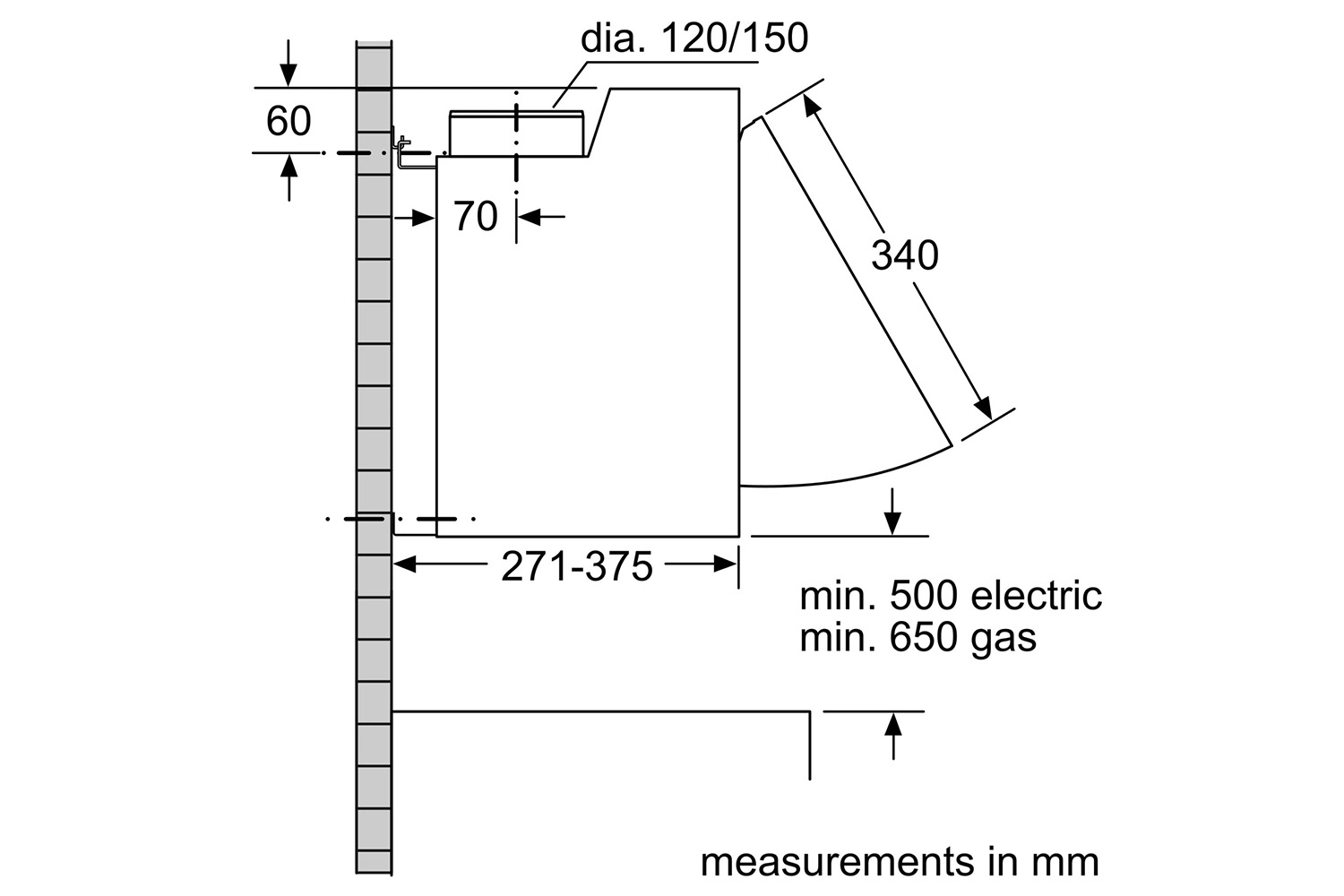

- Dimensions exhaust air (HxWxD): 402-402 x 599 x 271 mm
- Dimensions recirculating, chimney (HxWxD): 402-402 x 599 x 271 mm
- Total power of the motors: 250W
- Sound power at max. speed (2010/30/EC): 70 dB
- Sound power at max. speed (recirculation): 75 dB
- Height without worktop / build under: 402-402/402-402 mm
- No-return airflow flap
- Appliance height exhaust air min: 402 mm
- Appliance height recirculating min: 402 mm
- Minimum distance above an electric hob: 500 mm
- Appliance height exhaust air max: 402 mm
- Appliance height recirculating max: 402 mm
- Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC): 174 lux
* In accordance with the EU-Regulation No 65/2014
Product Features:
- Push button control for extractor speeds and light
- 3 x power levels
- 2 x 3W LED
- 2 x metal grease filter cassettes
- LED lights: For optimal visibility and ambience while cooking
- Total luminance: 188 lux
- Total power of the lamps: 6 W
- Color temperature: Warm (<= 3.000 K)
Siemens iQ100 60cm Integrated Cooker Hood | LE66MAC00B is rated
3.7 out of
5 by
10.
Rated 1 out of
5
by
kayfern from
Too noisy
Too loud to use, even on the lowest setting.
Date published: 2021-04-09
Rated 5 out of
5
by
soozie66 from
Looks much nicer than older models
[This review was collected as part of a promotion.] the fact this comes with LEDs makes it a winner for me. Having had one of these before this minor upgrade is brilliant and worth the extra money. Also when fitting behind a door it disappears into the kitchen so does not become a statement and in a smaller kitchen (which is where I fitted this) it looks good. I would recommend this. I had my externally ducted and it seems to work well.
Date published: 2019-04-29
Rated 4 out of
5
by
Stuart from
Good product shame about the design flaws
The item is nicely presented for a low cost vent. The weaknesses are that there are no drains for any trapped grease to be cleaned and the light covers are made of poor quality plastic. I solved the latter by buying multiple replacement spares. All vents of this design will exhibit the same flaws so kitchen designers should advise potential customers.
Date published: 2023-03-20
Rated 1 out of
5
by
Wenthen from
Ridiculously noisy!
[This review was collected as part of a promotion.] It works uneventfully, but we rarely use it because the Minimum fan setting is much too loud, I seriously doubt this could be used in a commercial kitchen, because it is so loud.
Date published: 2024-01-14
Rated 1 out of
5
by
Hammond from
Noisey poor quality
In my opinion this fan is noisy and of poor quality. The previous fan we had which was 25 years old stopped working (far enough) this one is very noisey in comparison and seems cheaply made.
Date published: 2024-07-20
Rated 5 out of
5
by
Benny from
Siemens Extractor Hood
Fantastic appliance removes cooking smells instantly has plenty of power even on setting number 1 fitted perfectly I did not need any other fittings other than what was in the box
Date published: 2020-05-03
Rated 5 out of
5
by
Bill from
cooker hood
The iQ100 was a perfect fit and very easy to install. I wash the filters in the dish washer when needed the speed controls are solid and once again easy to use.
Date published: 2023-02-22
Rated 5 out of
5
by
Dee mid from
Brilliant
This is to replace my Electrolux hood that was a big disappointment, amazing results so glad I bought the Siemens. So much more powerful
Date published: 2023-01-29
