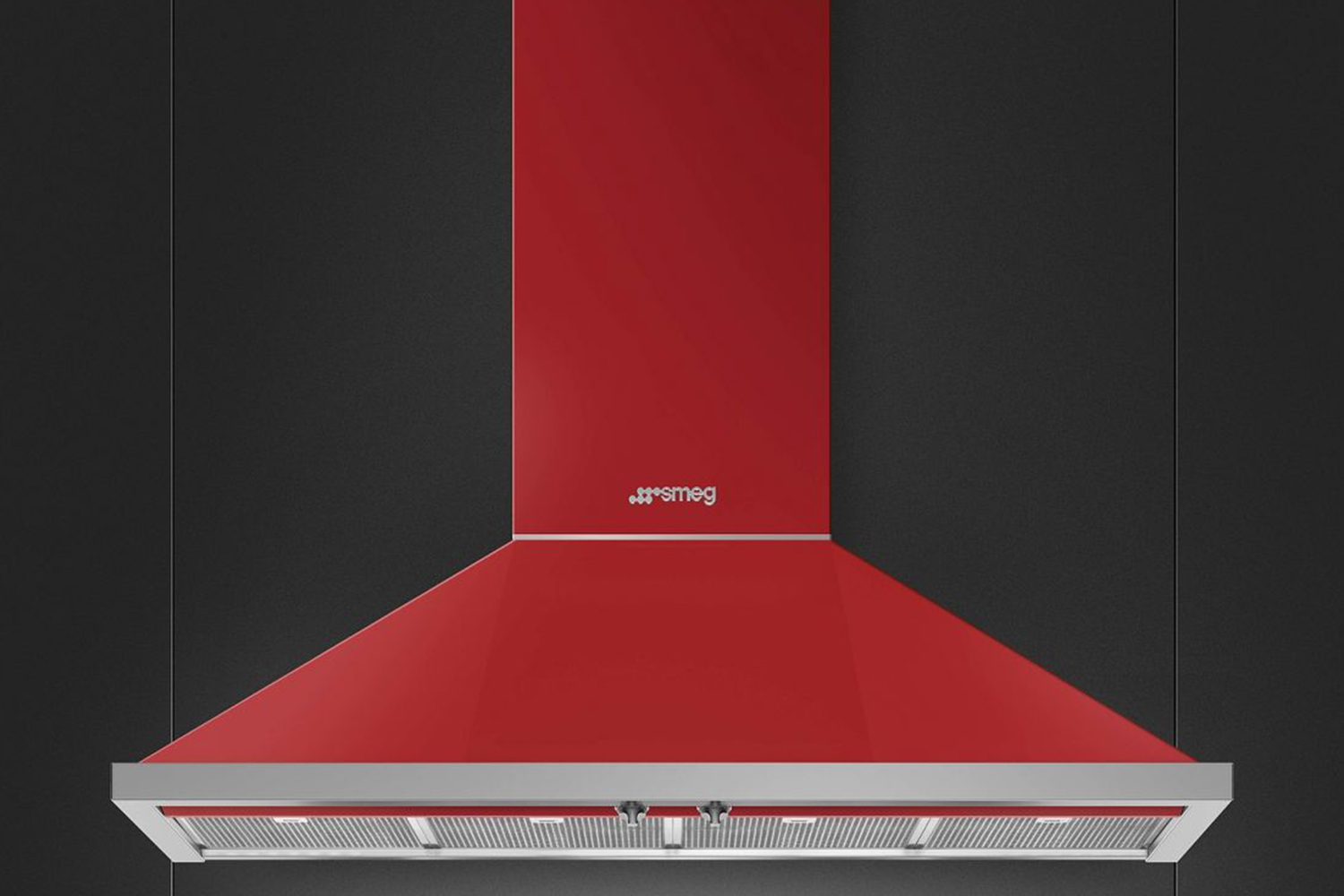

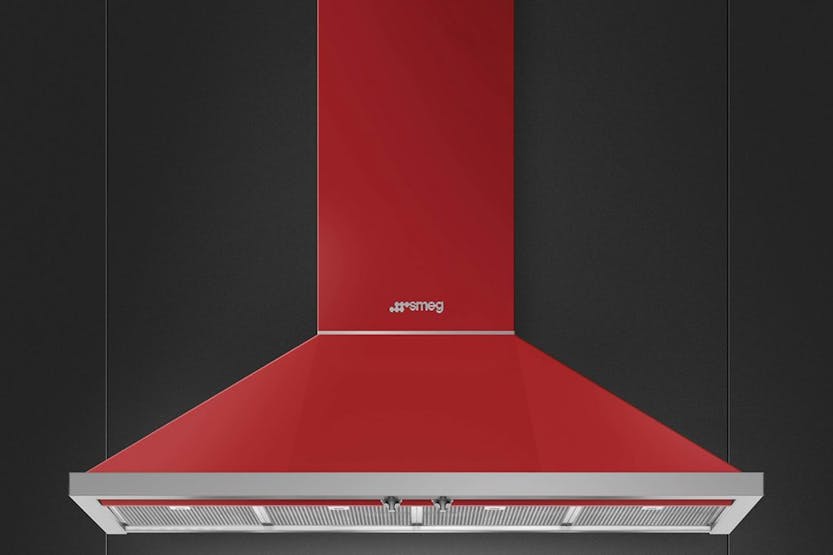

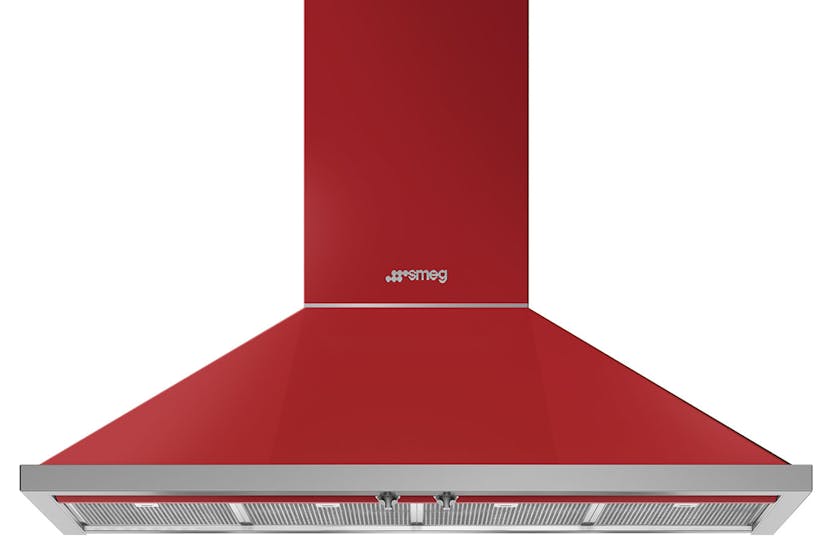

Smeg 120cm Portofino Chimney Cooker Hood | KPF12RD | Red

Portofino Aesthetic

Inspired by the rich tones of the Italian Riviera, meet Smeg's freshest design yet, perfect for contemporary living. Portofino by Smeg.Portofino hoods are elegant and co-ordinate with the Portofino cooker range, whilst offering solid extraction and low noise levels.

Intensive Extraction

A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or a preparing an aromatic curry, even the strongest cooking odours will be removed in no time.

Intensive Extraction

A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or a preparing an aromatic curry, even the strongest cooking odours will be removed in no time.

LED Light

These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.

Stainless Steel Filters

Easy cleaning with washable stainless steel metal grease filter(s) which can be put into the dishwasher.

Aesthetics:

• Aesthetics: Portofino
• Material: Stainless steel + painted material
• Type of steel: Brushed

Technical Features:

• Light power: 4 W
• Light color temperature scale (°k): 4000 °k
• Free outlet maximum capacity: 815 m³/h
• Motor power: 275 W
• Anti-Grease filters: Stainless steel
• Minimum distance from gas hob: 650 mm
• Vent outlet: 150 mm
• Minimum distance from electric hob: 650 mm
• Non return valve
• Fluid dynamic efficiency class (FDEC): A
• Grease filtering efficiency class (GFEC): D
• Lighting efficiency class (LEC): A
• Annual efficiency consumption (AEChood): 42 KWh/year
• Fluid dynamic efficiency (FDE): 36.3
• Lighting efficiency (LE): 74.8 lux/W
• Grease filtering efficiency (GFE): 74.9 %
• Air flow at minumum speed (Qmin): 287 m³/h
• Maximum extraction rate: 606 m³/h
• Intensive extraction rate: 777 m³/h
• Airbourne acouistical A-weighted sound power Emission at minimum speed (SPEmin): 49 dB(A)
• Airborne acoustical A-weighted sound power Emission at maximum speed (SPEmax): 67 dB(A)
• Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 73 dB(A)
• Time increase factor (F): 0.7
• Energy Efficiency Index per first cavity: 41.4
• Measured air flow rate at best efficiency point (Qbep): 400 m³/h
• Measured air pressure at best efficiency point (Qbep): 490 Pa
• Measured electric power input at best efficiency point (Wbep): 150 W
• Normal Power of the light system (Wl): 4 W
• Average illumination of the light on the cooking surface (Emiddle): 329 lux

Electrical Connection:

• Nominal power: 280 w
• Voltage: 220-240 v
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1000 mm

Speed 1:

• Extraction rate IEC 61591: 287 m³/h
• Noise level IEC 60704-2-13: 49 dB(A)
• Power: 176 W

Speed 2:

• Extraction rate IEC 61591: 389 m³/h
• Noise level IEC 60704-2-13: 58 dB(A)
• Power: 230 W

Speed 3:

• Extraction rate IEC 61591: 606 m³/h
• Noise level IEC 60704-2-13: 67 dB(A)
• Power: 260 W

Intensive Speed:

• Extraction rate (IEC 61591): 777 m³/h
• Noise level IEC 60704-2-13: 73 dB(A)
• Power: 286 W

Product Features:

• Hood type: Decorative wall hood
• Aesthetics: Portofino
• Intensive speed
