Smeg 60cm Chimney Hood | KSED65XE | Stainless Steel

LED Lighting

These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.

Aesthetics:

• Colour: Stainless steel
• Finishing: Brushed
• Aesthetics: Universal
• Design: Chimney
• Material: Stainless steel

Technical Features:

• No. of lights: 2
• Light type: LED
• Light power: 1 W
• Light color temperature scale (°K): 4000 °K
• Free outlet maximum capacity: 600 m³/h
• Motor power: 200 W
• No. of filters: 2
• Anti-grease filters: Aluminium
• Minimum distance from GAS hob: 750 mm
• Vent outlet: 150 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Non return valve: Yes

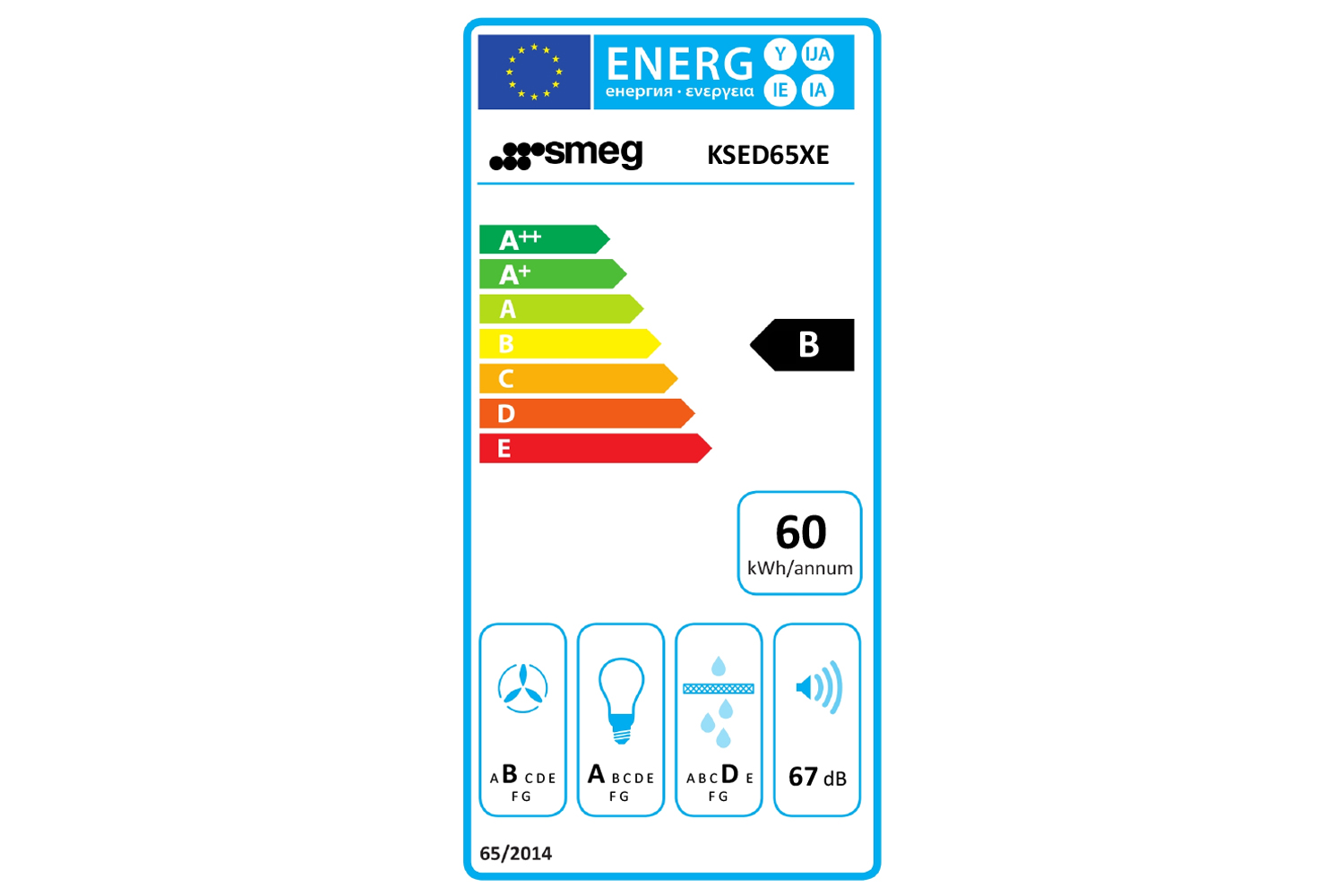

Performance / Energy Label:

• Energy efficicency class ( EEC): B
• Fluid Dynamic Efficiency class (FDEC): B
• Grease Filtering Efficiency Class (GFEC): D
• Lighting Efficiency Class (LEC): A
• Annual Efficiency Consumption (AEChood): 60 KWh/year
• Fluid Dynamic Efficiency (FDE): 26
• Lighting Efficiency (LE): 100.2 lux/W
• Grease Filtering Efficiency (GFE): 74.4 %
• Air flow at minumum speed (Qmin): 351 m³/h
• Maximum extraction rate: 635 m³/h
• Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 53 dB(A)
• Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
• Time increase factor (F): 1.1
• Energy Efficiency Index per first cavity: 62.2
• Measured air flow rate at best efficiency point (Qbep): 355 m³/h
• Measured air pressure at best efficiency point (Qbep): 385 Pa
• Measured electric power input at best efficiency point (Wbep): 146 W
• Normal Power of the light system (Wl): 2 W
• Average illumination of the light on the cooking surface (Emiddle): 221 lux
• Sound power level at highest setting (Lwa): 67 dB(A)

Electrical Connection:

• Nominal power: 202 W
• Voltage: 220-240 V
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1000 mm

Speed 1:

• Extraction rate IEC 61591: 351 m³/h
• Noise level IEC 60704-2-13: 53 dB(A)
• Power: 140 W

Speed 2:

• Extraction rate IEC 61591: 420 m³/h
• Noise level IEC 60704-2-13: 57 dB(A)
• Power: 157 W

Speed 3:

• Extraction rate IEC 61591: 635 m³/h
• Noise level IEC 60704-2-13: 67 dB(A)
• Power: 191 W

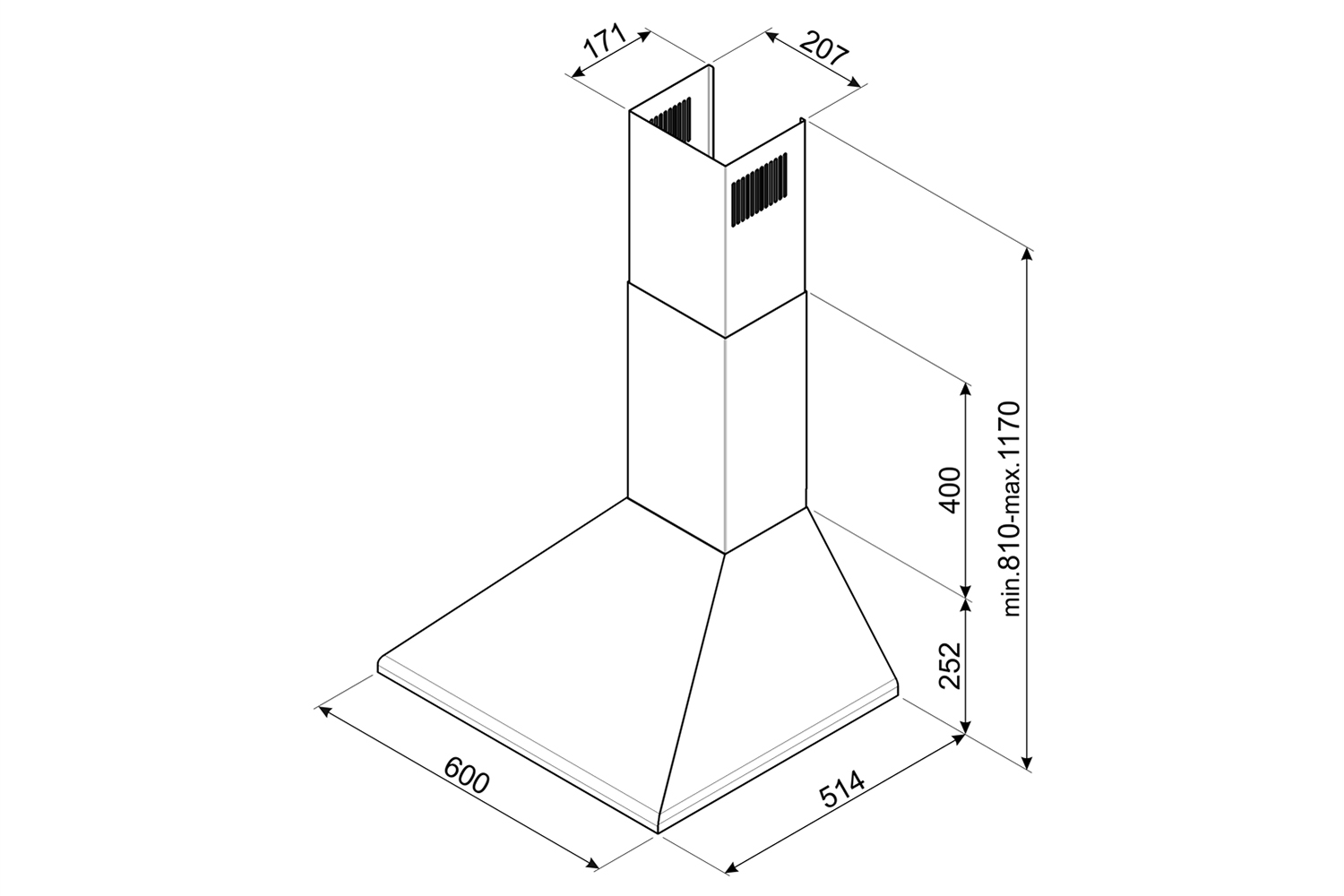

Logistic Information:

• Dimensions of the product (mm): 652x600x514
• Width: 600 mm
• Depth (mm): 514 mm
• Product Height (mm): 652 mm
• Net weight (kg): 11.200 kg

Prosuct Features:

• Product family: Hood
• Hood Type: Decorative wall hood
• Hood width: 60 cm
• Extraction: Expulsion
• No. of speeds: 3
• Control setting: Slider
